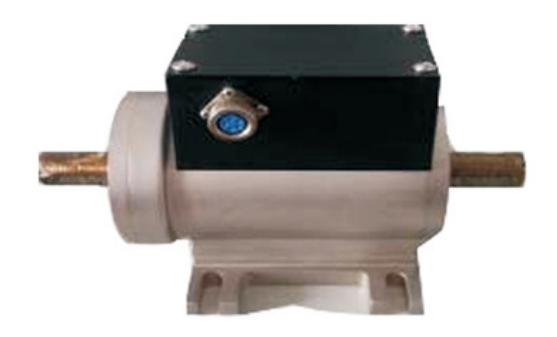

LCT016 Rotating Torque Meters Dynamic Torque Sensors Dynamic Torque Meters

Product Description

圣邦网站2详情页-1000_01 - 副本


Product introduction:

◎Measuring range: 50…50kNm；

◎Accuracy:±0.1% FS, 0.25% FS, 0.5% FS;

◎Resistance strain is an integrated product composed of sensitive elements and integrated circuits

◎High precision, stable and reliable performance;

◎Output forward and reverse torque signals, with both ends connected by keys;

◎The maximum speed shall not exceed 8000 rpm;

◎It is widely used in pull pressure testing instruments such as plug-in force tester, rivet machine, welding machine, cold and hot press film pasting machine, keyboard button hand sensitivity tester, as well as automation equipment and testing field;

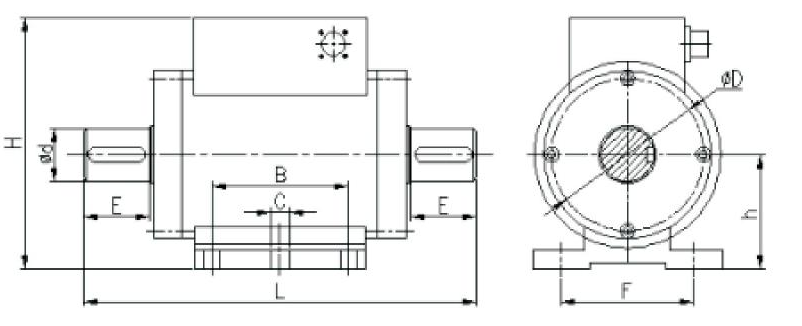

Dimension:mm

Cap.(Nm) D d L E H h B G F L×W×H Note
50-100 78 18 188 28 111 54 72 10 70 26×6×6 Single bond
200 88 28 207 35 132 60 72 10 70 30×8×7 Single bond
300-500 98 38 240 45 142 65 72 10 70 38×10×8 Double bond
1k 108 48 275 60 152 70 69 11 90 40×14×9 Double bond
2k 118 55 298 70 164 77 69 12 90 60×16×10 Double bond
3k-5k 143 75 356 100 189 90 68 14 146 93×20×12 Double bond
10k-20k 158 98 388 118 204 109 80 14 170 108×28×16 Double bond
30k 205 125 395 110 270 140 79 17 170 102×32×18 Double bond
50k 215 140 451 135 273 138 79 17 170 123×36×26 Double bond


Technical Parameter:

Cap. 50/100/200/300/500/1-50kNm Annual stability 0.25%/Year
Power supply ±15VDC(Frequency signal output)
24VDC (Analog signal output)		 Insulation resistance ≥2000MΩ(100VDC)
Torque signal 5-15kHz(amplitude12V,zero point10kHz) Working temperature -20～+70℃
(Customizable high temperature type-20～+120℃)
4-20mA、1~5VDC,0-10VDC(Optional) Relative humidity 0~90%RH
Speed range 1,000,300,060,008,000rad/min Overload capacity 150%FS
Speed signal Standard products without speed measurement;

Please specify when ordering with measured speed;

 Frequency response 1ms
Accurucy ±0.1,0.25,0.5%F.S



Product name LCT016 Rotating Torque Meters Dynamic Torque Sensors Dynamic Torque Meters
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
