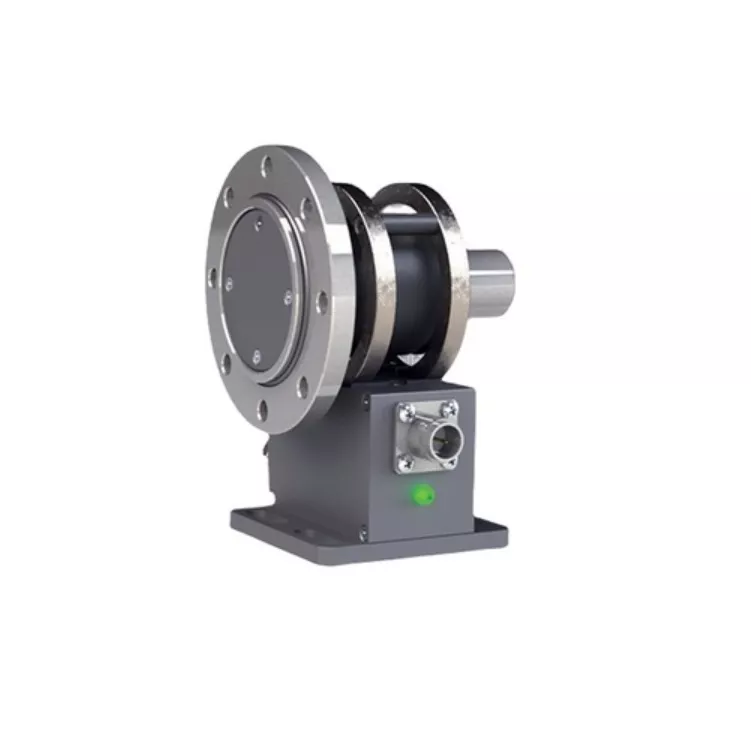

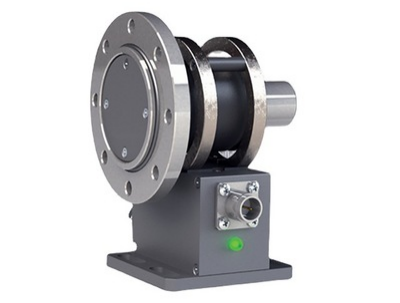

Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;
definition: High precision Stable performance Maximum measuring speed 100 rpm

• It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
• High precision, stable and reliable performance
• Medium/Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
• Speed up to 1800 RPM.

• It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
• High precision, stable and reliable performance
• Small Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
• Speed up to 16000 RPM.

• Boot 5 minutes into the working status, not need preheating course.
• high accuracy, good stability and anti-jamming.
• Do not need repeated zero setting can measure positive and negative torque.
• Small volume, light weight, easy to install.
• The sensor can be used independently of the secondary instrument to directly output a frequency signal or analog that is
• proportional to the torque.

Product description:
Can measure the static torque and also the rotation torque;
Detection of high precision, good stability, strong anti-interference;
Without repeated zero calibration and can be measured continuously positive and negative torque;
No wear parts such as collecting ring, can run at high speed for a long time;
Strain Elastomer strength, can withstand 150% loading;
Strong anti-interference, can be anywhere, any direction of installation;
Output signal:  Pulse, 4-20mA
