SAINTBOND / LCSW7 Crane Scales And Dynamometers Tension Load Cell Ideal Load Link for Cranes Scale 1/3/5/12/25/35/50/75/100/150/200/250/300/500T

Add to Wishlist
Share it:

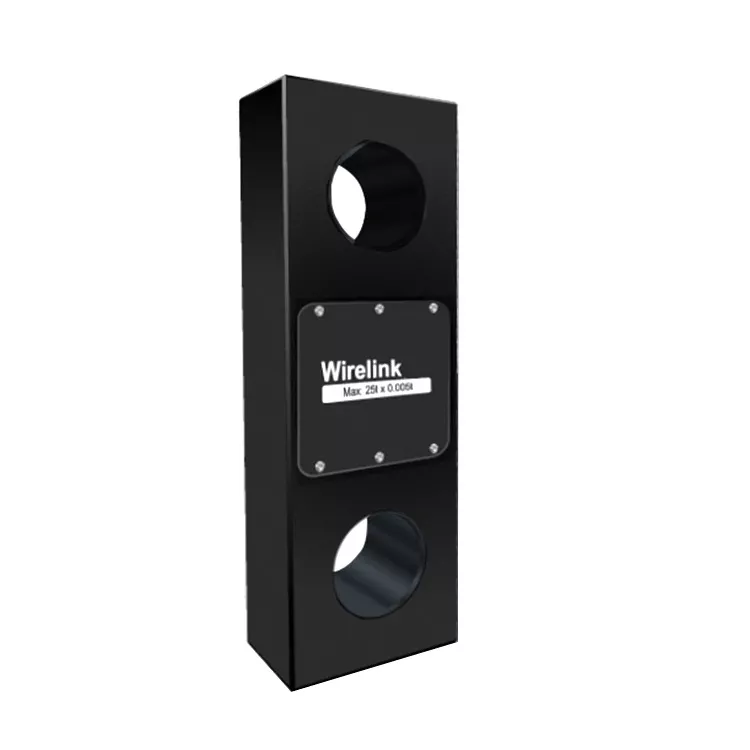

LCSW7 Crane Scales And Dynamometers Tension Load Cell Ideal Load Link for Cranes Scale 1/3/5/12/25/35/50/75/100/150/200/250/300/500T

Product Description



LCSW7

Building upon the ever popular and industry leading loadlink. features a range of cost effective high accuracy load link load cells offering high safety factor and resolution, and a robust carry/storage case.The standard range of the load link load cells is from 1tonnes to 500 tonnes.Load link load cells can be used in a wide variety of applications from testing and overhead weighing to bollard pulling and tug testing.



At China Industries we have over 10 years experience designing, manufacturing and supplying load cells of the highest quality. We can supply all your load cell requirements and offer expert load cell and applications advice.View our load links range online today or contact our friendly team for specialist load cell and applications advice.

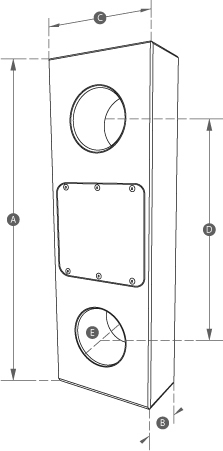

Dimension:


Capacity A(mm) B(mm) C(mm) D(mm) E(mm)
1t 204 43 101 146 24.5
2.5t 204 43 101 146 24.5
5t 249 43 101 165 38
12t 305 47 101 193 47.5
25t 340 60 115 215 55
35t 393 75 126 225 60
50t 424 75 163 230 76
75t 470 75 202 260 76
100t 608 99 255 320 109
150t 670 99 303 350 109
200t 700 144 320 350 132
250t 700 144 320 350 132
300t 806 150 426 350 160
500t 1000 200 570 600 200

 Technical Parameter：

Rated Load: 1/3/5/12/25/35/50/75/100/150/200/250/300/500t
Sensitivity: (2.0±0.01%) mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.02% F.S Max. Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 200%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12 DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 385±5Ω Element Material: Alloy/ Stainless Steel
Output Resistance: 351±2Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ


Product name LCSW7 Crane Scales And Dynamometers Tension Load Cell Ideal Load Link for Cranes Scale 1/3/5/12/25/35/50/75/100/150/200/250/300/500T
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
