SAINTBOND / LC5409 Best Mini Load Cells Miniature In Line Load Cell

Add to Wishlist
Share it:

LC5409 Best Mini Load Cells Miniature In Line Load Cell

Product Description

LC5409

Features:

◎High speed, low deflection;

◎Minimal mounting clearance;

◎Lightweight and ultra miniature solution;

◎Outer diameter of 0.38″[9.5 mm];

◎17-4 PH stainless-steel construction;

◎For use, both in-line tension and compression;

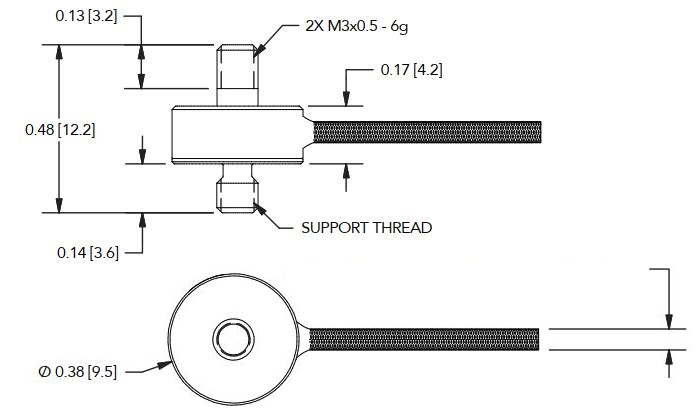

Dimension:Inches(mm)

LC5409LC5409尺寸图_00

Note: Static one time bends are not to exceed 2-3 times the diameter of the cable. Continuous bends should not exceed a radius of 10 times the diameter of the sensor cable. Polyester Cable versions are available to offer support for applications with cable movement.



Type Capacity Deflection Natural Frequency
lb N (in) (kHz)
LC5409 1000g 9.8 0.0001 19
5lb 22.2 0.0001 26
10lb 44.5 0.0002 26
25lb 111.2 0.0002 42



Technical Parameter:

Rated Capacity 1000g/5lb/10 lb/25lb

9.8/22.2/44.5/111.2N

 Excitation,: 7max ((VDC or VAC))
Sensitivity 1mV/V (1000g, 5lb)

2mV/V (10lb, 25lb)

 Operating Temp.Range: -10－+40℃
Zero Balance ≤±0.1 mV/V Safe Overload: 120%R.C.
Rated Output 2.0±0.5%mV/V Insulation Resistance: ≥2000MΩ(50VDC)
Input Resistance 350±30Ω Hysteresis Error: ±0.05%R.O.
Output Resistance 350±2Ω Temp.Effect on Output: ±0.05%R.O./10℃
Linearity Error ±0.05%R.O. Temp.Effect on Zero: ±0.05%R.O./10℃
Repeatability Error ±0.1%R.O. Calibration (standard): Tension;
Element Material: 17-4 PH Stainless Steel Calibration (available): Compression;



Product name LC5409 Best Mini Load Cells Miniature In Line Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
