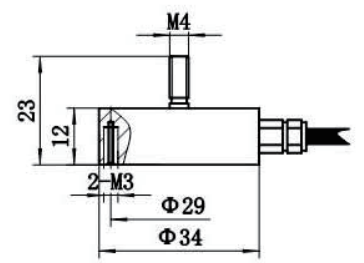

Dimension:
Description:

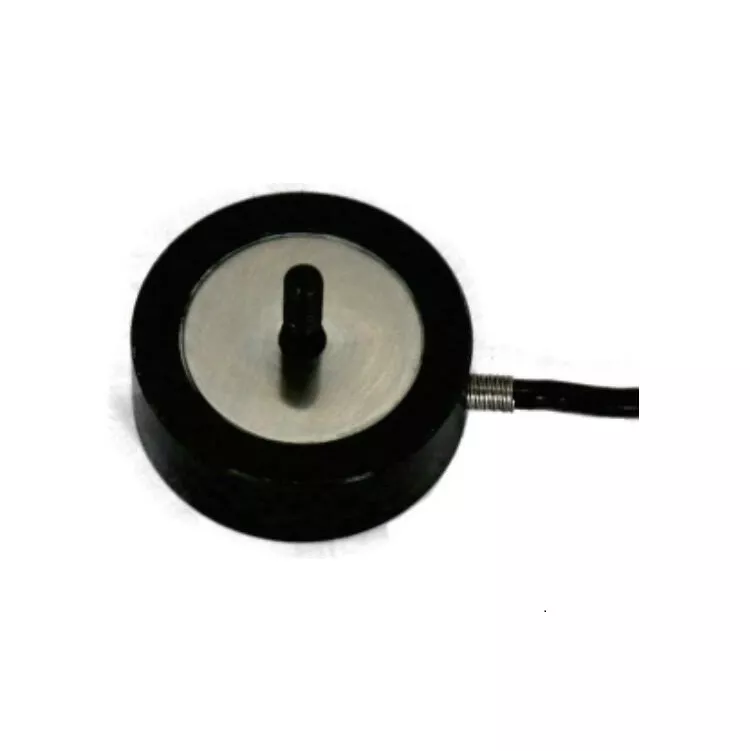

It has the characteristics of high accuracy, high dynamic response and small volume, and small eccentricity error. It can be used in the fields of keystroke hand sensitivity tester, cold and hot pressing film detection, manipulator grip, medical devices and so on.
Technical Data:
Product description:
Capacity ：5~500kg
Material: stainless steel
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
SC219는 고압축 계량 어플리케이션에 적합한 원형 버튼형 로드셀입니다. 나사산이 있는 중앙 구멍이 있어 다양한 장착 방식으로 설치할 수 있습니다. 부식성 환경에서의 내구성을 높이기 위해 스테인리스 스틸 재질로도 제작되어 견고합니다.
The SC219 is a round button load cell for heavy compression weighing applications. It has a threaded center hole which makes it possible to install in a variety of different mounting configurations. It rugged is also available in stainless steel for added resistance for corrosive environments.
SC29FB는 매우 무거운 압축 하중을 계량하는 어플리케이션에 적합하도록 설계된 대형 버튼형 로드셀입니다. 중량 계량 어플리케이션에서는 설치가 매우 중요하므로, SC29FB는 나사산이 있는 큰 중앙 구멍과 로드셀 본체 주변에 여러 개의 관통 구멍을 가지고 있습니다. 견고하게 설계되어 혹독하고 부식성이 있는 환경에도 설치 가능합니다. 또한, SC29FB는 간편한 설치를 위해 탈착식 방수 커넥터를 갖추고 있습니다.
The SC29FB is large button load cell designed for extremely heavy compression weighing applications. Mounting is critical for heavy weighing applications so SC29FB has a large center hole that is threaded and multiple thru holes around the body of the load cells. It is designed to be rugged and be installed in harsh as well as corrosive environments. The SC29FB also incorporates a removable waterproof connector for simplified installation.
Product description:
Capacity ：100~5000kg
Stainless Steel
High stability
Can be installed in small spaces
Stable anti-interference signal
1.Stainless steel;
2.Super micro structure;
3. Suitable for force measuring in a narrow space.
Product description:
Capacity ：20,30,50kg
Material: stainless steel
Defend grade: IP66.
LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAU-C3/LTU-C3 start from 5kg to 50kg.The measuring accuracy is 0.2%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
LAU-C3/LTU-C3 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
1.High precision and compact structure.
2.Environmental Protection IP65 with complete hermetic sealing.
3.It is suitable for force measurement and control, automation equipment, aging testing machine, key stress analysis and power-assisted device in 3C digital production.
4.Compression force Utilizes Metal Foil Strain Gauge Technology.
5.Small size, easy to install in small spaces.
Micro Compression Force Sensor
D 35mm*H 15mm
Capacity: 100,200,300,500,1000,2000kg
Category: Miniature Button Compression Force Sensor
Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics;
Mold assembly and other industrial test, measurement and control systems, etc.
Material: stainless steel, High temperature performance can be determine, Customizable high temperature performance
Size: Thin design, Large range
KWT1D40 series is a compact compression force sensor, which can reliably measure the compression force in a limited space. Due to the special structural design, the sensor has a high natural frequency, which can adapt to the high-frequency loads.
Micro Compression Force Sensor
D 25mm*H 18mm
Capacity: 10,20,50,100,200,500kg
Category: Miniature Button Compression Force Sensor
