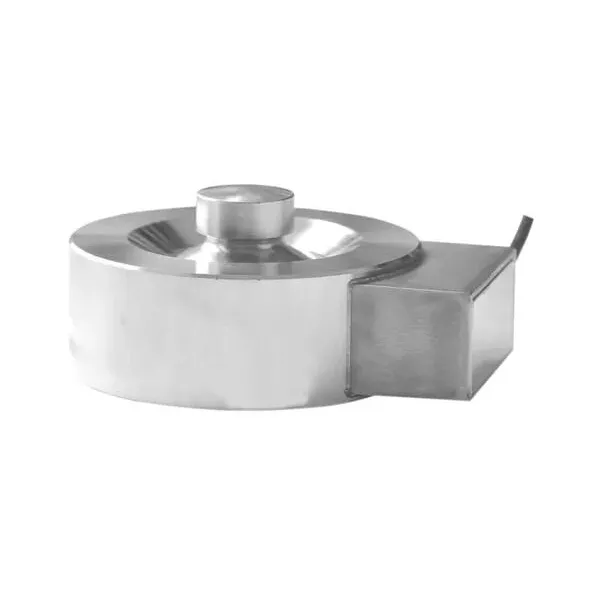

LC5200 Load Cells Suppliers & Force Sensors Compression Load Cell

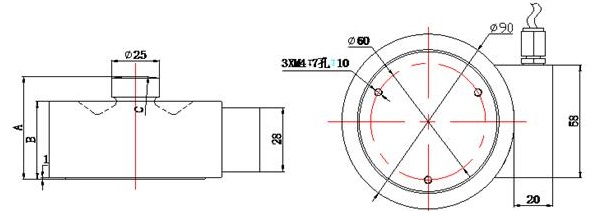

Dimensions: Unit: mm
Technical Parameter:
Product description:
Capacity ：3~100kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used in 3C digital production and manufacturing inspection process force measurement, power-assisted equipment, robotic arms and other automation fields
LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAU-C3/LTU-C3 start from 5kg to 50kg.The measuring accuracy is 0.2%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
LAU-C3/LTU-C3 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
SC215B 로우 프로파일 버튼형 로드셀은 공간이 제한된 압축 어플리케이션에 이상적입니다. 콤팩트한 디자인에 나사산 중앙 구멍이 있어 다양한 장착 구성이 가능합니다.
The SC215B low profile button load cell ideal for compression applications where space is limited. Its compact design also has a threaded center hole that allows for different mounting configurations.
LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAU-C1/LTU-C1 start from 5kg to 10kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
LAU-C1/LTU-C1 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
The ZMMA is compact size and low profile button load cell, constructed from stainless steel and protected from moisture with an epoxy bonded cover. The load cell is easy to be installed with various automation equipment. The dimension can be customized based on client’s requirement.
Features:
Capacity 5kg-5t
Button type load cell
Low profile
Stainless steel
Optional features:
Hermetically sealed available
Small load cell is a button type load cell for compression measurement. It has a capacity range from 5kg to 5 ton, diameter 20mm-37.7mm and height 12mm-18mm, cable Φ3*2m. Button load cell can be used in places where space is limited, such as button hand-feeling tester, mobile phone screen/fingerprint button force detection system, robot grasping force detection system.
Product description:
Capacity ：0~5Ton
Material: alloy steel
Type: spoke type
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Product description:
Capacity ：20,30,50kg
Material: stainless steel
Defend grade: IP66.
1.High precision and compact structure.
2.Environmental Protection IP65 with complete hermetic sealing.
3.It is suitable for force measurement and control, automation equipment, aging testing machine, key stress analysis and power-assisted device in 3C digital production.
4.Compression force Utilizes Metal Foil Strain Gauge Technology.
5.Small size, easy to install in small spaces.
1.High precision and compact structure.
2.Environmental Protection IP65 with complete hermetic sealing.
3.It is suitable for force measurement and control, automation equipment, aging testing machine, key stress analysis and power-assisted device in 3C digital production.
4.Compression force Utilizes Metal Foil Strain Gauge Technology.
5.Low profile、small、Low Deflection.
Product description:
Capacity ： 5kg~200kg
Material: stainless steel
Defend grade: IP67.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Product description:
Capacity ：300~5000kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used in 3C digital production and manufacturing inspection process force measurement, power-assisted equipment,robotic arms and other automation fields
