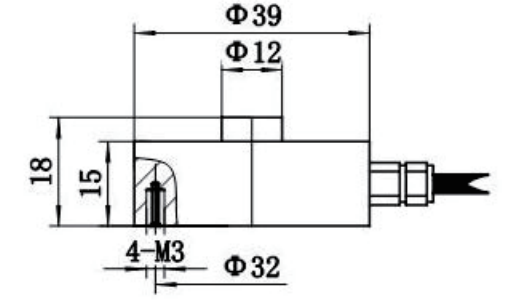

Dimension:
Description:
It has the characteristics of high precision, high dynamic response, small size and easy installation. It is suitable for riveting machine, extrusion equipment, film press, impact testing and industrial automation measurement and control fields.
Technical Data:
Product description:
Capacity ：20,30,50kg
Material: stainless steel
Defend grade: IP66.
KWT1D40 series is a compact compression force sensor, which can reliably measure the compression force in a limited space. Due to the special structural design, the sensor has a high natural frequency, which can adapt to the high-frequency loads.
SC215B 로우 프로파일 버튼형 로드셀은 공간이 제한된 압축 어플리케이션에 이상적입니다. 콤팩트한 디자인에 나사산 중앙 구멍이 있어 다양한 장착 구성이 가능합니다.
The SC215B low profile button load cell ideal for compression applications where space is limited. Its compact design also has a threaded center hole that allows for different mounting configurations.
SC218은 고압축 계량 어플리케이션에 적합한 원형 버튼형 로드셀입니다. IP68 등급으로 혹독한 환경에 적합합니다. 부식성 환경에 대한 내구성을 높이기 위해 스테인리스 스틸 소재로도 제작됩니다.
The SC218 is a round button load cell for heavy compression weighing applications. It is rated for IP68 and is ideal for harsh environment. The SC218 is also available in stainless steel for added resistance for corrosive environments.
Micro Compression Force Sensor
D 25mm*H 18mm
Capacity: 10,20,50,100,200,500kg
Category: Miniature Button Compression Force Sensor
1.Stainless steel;
2.Super micro structure;
3. Suitable for force measuring in a narrow space.
Widely used in auto press assembly, automated assembly, 3C product testing;New energy product assembly, medical testing, robotics;
Mold assembly and other industrial test, measurement and control systems, etc.
Material: stainless steel, High temperature performance can be determine, Customizable high temperature performance
Size: Thin design, Large range
Small load cell is a button type load cell for compression measurement. It has a capacity range from 5kg to 5 ton, diameter 20mm-37.7mm and height 12mm-18mm, cable Φ3*2m. Button load cell can be used in places where space is limited, such as button hand-feeling tester, mobile phone screen/fingerprint button force detection system, robot grasping force detection system.
Micro Compression Force Sensor
D 35mm*H 15mm
Capacity: 100,200,300,500,1000,2000kg
Category: Miniature Button Compression Force Sensor
Button load cell is a compression load cell with a diameter 10mm. It has capacity range from 5kg, 10kg, 20kg, 30kg, 50kg to 100kg. Button load cell can be used for 3C product testing, medical testing, automated equipment testing, etc. It can also be customized for the high-temperature working condition.
SC29FB는 매우 무거운 압축 하중을 계량하는 어플리케이션에 적합하도록 설계된 대형 버튼형 로드셀입니다. 중량 계량 어플리케이션에서는 설치가 매우 중요하므로, SC29FB는 나사산이 있는 큰 중앙 구멍과 로드셀 본체 주변에 여러 개의 관통 구멍을 가지고 있습니다. 견고하게 설계되어 혹독하고 부식성이 있는 환경에도 설치 가능합니다. 또한, SC29FB는 간편한 설치를 위해 탈착식 방수 커넥터를 갖추고 있습니다.
The SC29FB is large button load cell designed for extremely heavy compression weighing applications. Mounting is critical for heavy weighing applications so SC29FB has a large center hole that is threaded and multiple thru holes around the body of the load cells. It is designed to be rugged and be installed in harsh as well as corrosive environments. The SC29FB also incorporates a removable waterproof connector for simplified installation.
Subminiature load cell is a button type load cell with a diameter only 8mm. It is made of stainless steel, with protection class IP66, Φ2*2m cable. Subminiature load cell can be used for keyboard button hand-feeling test, force tester, automated assembly of new energy products and automotive products. It can be customized for the high-temperature working condition such as injection moulding, extrusion and other manufacturing processes.
