Product description:
Capacity ：300~5000kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used in 3C digital production and manufacturing inspection process force measurement, power-assisted equipment,robotic arms and other automation fields

SC29FB는 매우 무거운 압축 하중을 계량하는 어플리케이션에 적합하도록 설계된 대형 버튼형 로드셀입니다. 중량 계량 어플리케이션에서는 설치가 매우 중요하므로, SC29FB는 나사산이 있는 큰 중앙 구멍과 로드셀 본체 주변에 여러 개의 관통 구멍을 가지고 있습니다. 견고하게 설계되어 혹독하고 부식성이 있는 환경에도 설치 가능합니다. 또한, SC29FB는 간편한 설치를 위해 탈착식 방수 커넥터를 갖추고 있습니다.

The SC29FB is large button load cell designed for extremely heavy compression weighing applications. Mounting is critical for heavy weighing applications so SC29FB has a large center hole that is threaded and multiple thru holes around the body of the load cells. It is designed to be rugged and be installed in harsh as well as corrosive environments. The SC29FB also incorporates a removable waterproof connector for simplified installation.

LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAU-C1/LTU-C1 start from 5kg to 10kg.The measuring accuracy is 1%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
LAU-C1/LTU-C1 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.

Small load cell is a button type load cell for compression measurement. It has a capacity range from 5kg to 5 ton, diameter 20mm-37.7mm and height 12mm-18mm, cable Φ3*2m. Button load cell can be used in places where space is limited, such as button hand-feeling tester, mobile phone screen/fingerprint button force detection system, robot grasping force detection system.

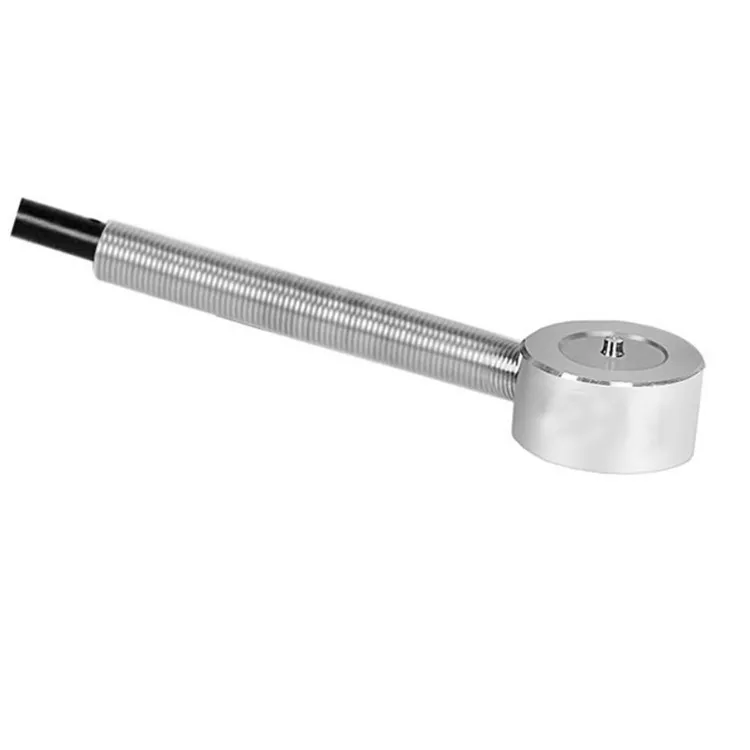

Subminiature load cell is a button type load cell with a diameter only 8mm. It is made of stainless steel, with protection class IP66, Φ2*2m cable. Subminiature load cell can be used for keyboard button hand-feeling test, force tester, automated assembly of new energy products and automotive products. It can be customized for the high-temperature working condition such as injection moulding, extrusion and other manufacturing processes.

SC219는 고압축 계량 어플리케이션에 적합한 원형 버튼형 로드셀입니다. 나사산이 있는 중앙 구멍이 있어 다양한 장착 방식으로 설치할 수 있습니다. 부식성 환경에서의 내구성을 높이기 위해 스테인리스 스틸 재질로도 제작되어 견고합니다.

The SC219 is a round button load cell for heavy compression weighing applications. It has a threaded center hole which makes it possible to install in a variety of different mounting configurations. It rugged is also available in stainless steel for added resistance for corrosive environments.

SC215B 로우 프로파일 버튼형 로드셀은 공간이 제한된 압축 어플리케이션에 이상적입니다. 콤팩트한 디자인에 나사산 중앙 구멍이 있어 다양한 장착 구성이 가능합니다.

The SC215B low profile button load cell ideal for compression applications where space is limited. Its compact design also has a threaded center hole that allows for different mounting configurations.

1.High precision and compact structure.
2.Environmental Protection IP65 with complete hermetic sealing.
3.It is suitable for force measurement and control, automation equipment, aging testing machine, key stress analysis and power-assisted device in 3C digital production.
4.Compression force Utilizes Metal Foil Strain Gauge Technology.
5.Small size, easy to install in small spaces.

The ZMMA is compact size and low profile button load cell, constructed from stainless steel and protected from moisture with an epoxy bonded cover. The load cell is easy to be installed with various automation equipment. The dimension can be customized based on client’s requirement.

Stainless steel

SC218C는 SC218과 같은 원형 버튼 압축 로드셀입니다. SC218C는 SC218의 저가형 버전으로 합금강 구조로만 제공됩니다. 또한, 1톤에서 10톤까지 용량 범위가 제한되어 있습니다.

The SC218C is a round button compression load cell like the SC218. The SC218C is a low cost version of the SC218 and is only available in alloy steel construction. It is also has limited capacity range of 1 Tonne to 10 Tonnes.
