Features:
◎High quality stainless steel material;
◎Low height,all sealed;
◎Apply to small space.;
◎In accordance with the DIN standard EN 60529, corrosion prevention
Dimension:
Specification:
1.Optional stainless steel welding seal, protection grade IP68.
2.Unique structure, and can be conveniently installed on various tanks.
3.Support bolts to prevent equipment from overturning.
4.Simple and fast installation.
5.Convenient maintenance, saving downtime and maintenance time.
6.It is suitable for the batching process control of small and medium-sized weighing reactors in chemical, pharmaceutical, food and other industries.

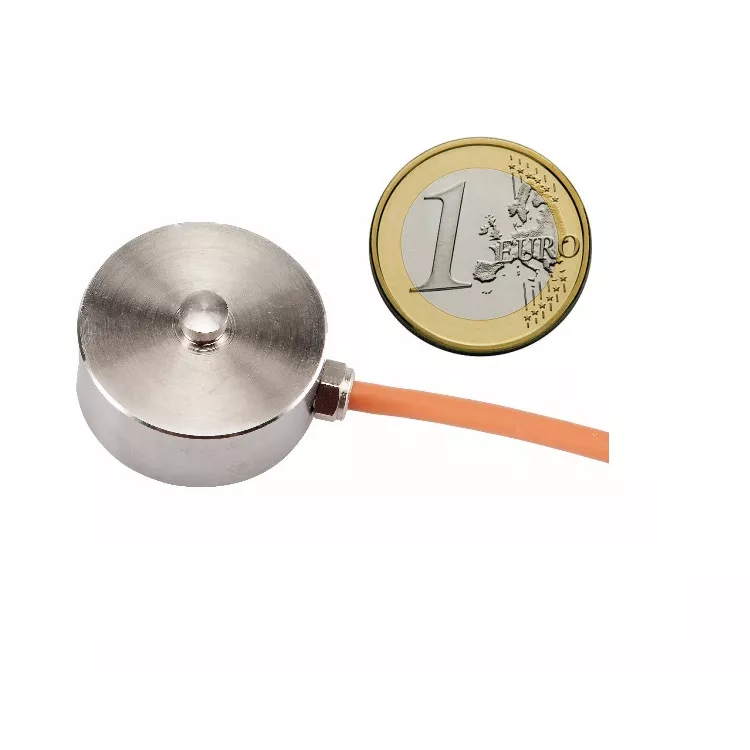

Micro Compression Force Sensor
D 120mm*H 20mm
Capacity: 10,20,50,100,200,500kg
Category: Miniature Button Compression Force Sensor
Product description:
Capacity ： 5kg~200kg
Material: stainless steel
Defend grade: IP67.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
SC201은 고압축 응용 분야에 적합하도록 설계된 원형 버튼형 로드셀입니다. 합금강으로 제작된 SC201은 견고하며, 방수 커넥터로 밀봉되어 혹독한 환경에도 설치 가능합니다. 슬림한 바디로 뛰어난 신뢰성과 일관된 정확도를 제공합니다.
The SC201 is a round button load cell designed for heavy compressive applications. Made of alloy steel, the SC201 is rugged and sealed with a water proof connector for installation in harsh environments. It provides great reliability and consistent accuracy is a low profile body.
Product description:
Capacity ：300~5000kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used in 3C digital production and manufacturing inspection process force measurement, power-assisted equipment,robotic arms and other automation fields
Micro Compression Force Sensor
D 108mm*H 44mm
Capacity: 3T
Category: Miniature Button Compression Force Sensor
LCT Miniature compression load cells are made of LCT’s advanced strain gauge technology.These load cells are designed for applications in a space limited area.
The capacities of LAU-C3/LTU-C3 start from 5kg to 50kg.The measuring accuracy is 0.2%R.O.(R.O.=Rated Output).) Manufactured from high quality aluminum alloy/stainless steel of aviation standard.
LAU-C3/LTU-C3 load cells are mainly used for flat mounting weighing systems and force measuring in a narrow space.
Micro Compression Force Sensor
D 67mm*H 112mm*M12
Capacity: 2.5T
Category: Miniature Button Compression Force Sensor
Product description:
Capacity ：0~5Ton
Material: alloy steel
Type: spoke type
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
Product description:
Capacity ：5~500kg
Material: stainless steel
Defend grade: IP66.
Application: suitable for force control in production control, vibratory feeding equipment and other electronic weighing or force measuring fields.
SC219는 고압축 계량 어플리케이션에 적합한 원형 버튼형 로드셀입니다. 나사산이 있는 중앙 구멍이 있어 다양한 장착 방식으로 설치할 수 있습니다. 부식성 환경에서의 내구성을 높이기 위해 스테인리스 스틸 재질로도 제작되어 견고합니다.
The SC219 is a round button load cell for heavy compression weighing applications. It has a threaded center hole which makes it possible to install in a variety of different mounting configurations. It rugged is also available in stainless steel for added resistance for corrosive environments.
Product description:
Capacity ：3~100kg
Material: stainless steel
Defend grade: IP66.
Application: It is widely used in 3C digital production and manufacturing inspection process force measurement, power-assisted equipment, robotic arms and other automation fields
