SAINTBOND / LC404M Mini Column Force Load Cell Sensor Calibration Digital Column Load Cell

LC404M Mini Column Force Load Cell Sensor Calibration Digital Column Load Cell

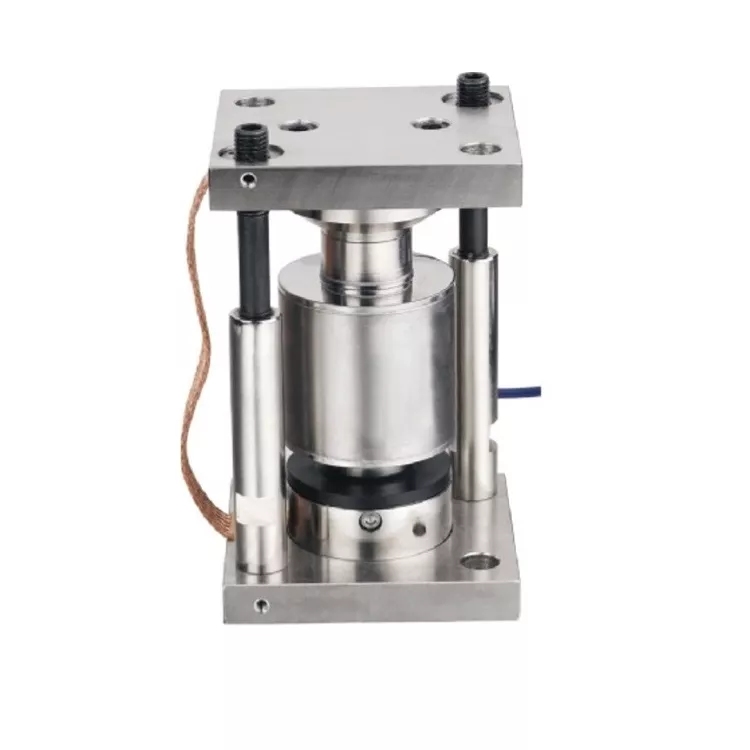

LC404M-1

Technical Parameter:

Rated Load:	10/20/25/30/40/50/60t	Operating Temp. Range:	-30~+70℃
Sensitivity:	(2.0±0.1%) mV/V	Max. Safe Over Load:	150%F.S
Combined Error:	±0.02% F.S	Ultimate Over Load:	300%F.S
Creep Error(30min):	±0.02% F.S	Recommend Excitation:	10~12VDC
Zero Balance:	±1% F.S	Maximum Excitation:	15V DC
Temp. Effect On Zero:	±0.02% F.S/10℃	Sealing Class:	IP67/IP68
Temp. Effect On Span:	±0.02% F.S/10℃	Element Material:	-Alloy / Stainless Steel
Input Resistance:	750±5Ω	Cable:	Length=13m
Output Resistance:	702±2Ω	Citation:	GB/T7551-2008/ OIML R60
Insulation Resistance:	≥5000MΩ	Mode Of Connection:	Red(Input+),Green(Output+, Black(Input-),White(Output-)

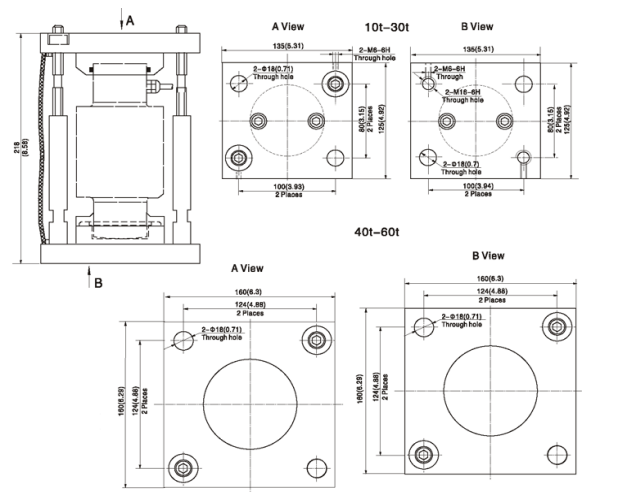

Dimension:

LC404M

Product Descriptions:

Load cells &weigh modules LC404M is a column, low profile, compression load cell. We can produce the load cell with analog load cells, digital load cells, wireless load cells, stainless steel load cells, alloy steel load cell, high temperature load cell, anti-lighting load cell. The fully leak-tested welded construction, advanced cable entry and built-in surge protection tubes ensure this product can be used successfully in harsh environments. This product meets the stringent weights and measures requirements. This product is suitable for use in road and rail weighbridges and process weighing applications, truck and rail weighbridges, silo and hopper weighing, process weighing and weighing equipment.

Product name	LC404M Mini Column Force Load Cell Sensor Calibration Digital Column Load Cell
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply

SAINTBOND / LC4501 S-type Column Tension Sensor Load Cell CSPM Load Cell 10 To 100T

AVAILABILITY: In stock

Model:	NF404
Capacity:	20,50,100,200,300,500,1000,2000N
Rated Output:	2.0±10%mV/V
Material:	Stainless steel
Protection Class:	IP65

Product name	LC409MA Zemic Weighing Column Load Cell Digital Load Cell
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply

Model:	NF407
Category：	Column Load Cells
Capacity:	0.5,1,2,3,5,10,20,50,100kN
Rated Output:	1.5±10%mV/V
Material:	Stainless steel
Protection Class:	~
Weight:	0.8/2kg

Model:	NF411
Category：	Column Load Cells
Capacity:	5,10,20,50,100kN
Rated Output:	1.0±10%mV/V
Material:	Stainless steel
Protection Class:	IP66

Model:	NF402B
Capacity:	20,50,100,200,300,500N
Rated Output:	2.0±10%mV/V
Material:	Stainless steel
Protection Class:	IP65
