SAINTBOND / LC402 Canister Load Cells Rocker Column Load Cells

Add to Wishlist
Share it:

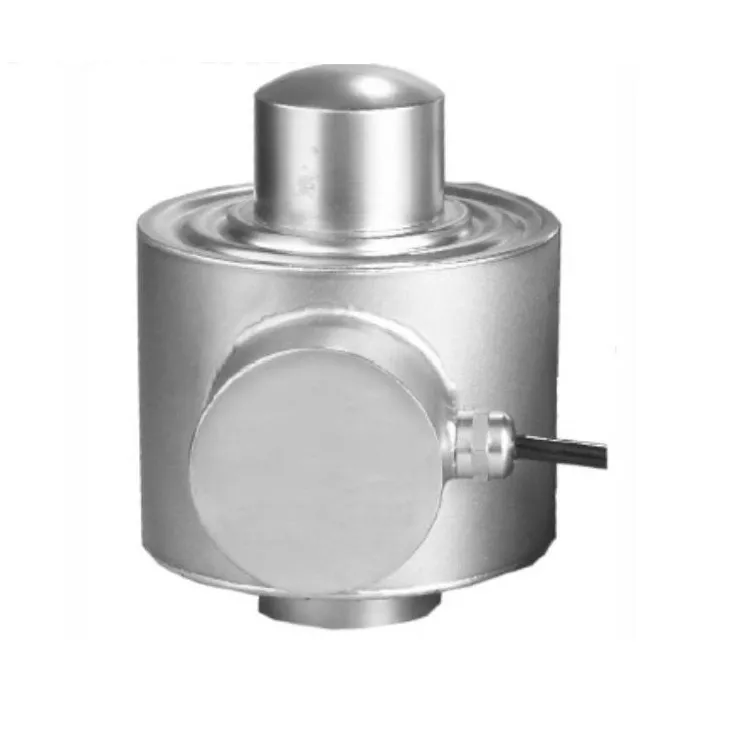

LC402 Canister Load Cells Rocker Column Load Cells

Product Description

LC402-3

Dimension:

LC402



Product Descriptions:

lLC402 load cells are available in the capacities 0.5t to 50t .

lAlloy steel/Stainless steel construction,hermetically welded,oil-proof,

waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environments.

lColumn structure, anti-reversal design,good self-aligning ability,suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.

lSafe and anti-explosive product,can be used in atrocious environment and hazardous areas.

Technical Parameter:

Rated Load: 10/20/30/40/50t Operating Temp. Range: -30~+70℃
Sensitivity: (3.0±0.1%) mV/V Maximum Safe Over Load: 150%F.S
Combined Error: ±0.05% F.S Ultimate Over Load: 250%F.S
Creep Error(30min): ±0.02% F.S Recommend Excitation: 10~12V DC
Zero Balance: ±1% F.S Maximum Excitation: 15V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Temp. Effect On Span: ±0.02% F.S/10℃ Element Material: -A: Alloy Steel, -SS: Stainless Steel
Input Resistance: 750±5Ω Cable: Length=15m
Output Resistance: 702±2Ω Citation: GB/T7551-2008/ OIML R60
Insulation Resistance: ≥5000MΩ Mode Of Connection: Red(Input+),Black(Input-),

Green(Output+),White(Output-)



Product name LC402 Canister Load Cells Rocker Column Load Cells
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
