SAINTBOND / LC3993 50/75/90/150KG Parallel Beam Electronic Load Cell Miniature Planar Beam Weight Sensor

Add to Wishlist
Share it:

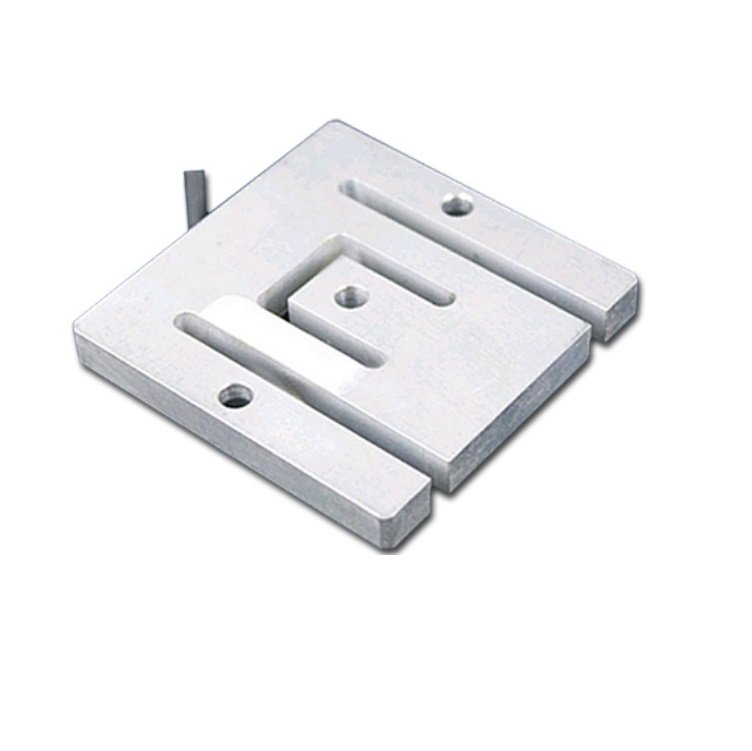

LC3993 50/75/90/150KG Parallel Beam Electronic Load Cell Miniature Planar Beam Weight Sensor

Product Description

LC3993

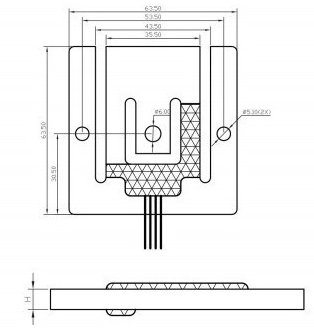

Dimensions:

LC3993

Technical Parameter:

Model Mini005 Temp.Effect on Output ±0.05%F.S/10℃
Capacity 50/75/90/150Kg Zero Output ±0.2%F.S
Comprehensive Error 0.25 Input Resistance 1157±10Ω
Output Sensitivity 1.0±0.1mV/V Output Resistance 1000±10Ω
Non-linearity ±0.05%F.S Insulation Resistance ≥2000MΩ (50V)
Repeatability ±0.05%F.S Excitation Voltage 5~10(DC)V
Hysteresis ±0.05%F.S Operation Temp.Range -10–+40℃
Creep ±0.05(20min)%F.S Overload Capacity 150%F.S
Temp.Effect on Zero ±0.05%F.S/10℃ Recommended Use Ompact Scales,Bench
and floor scales



Product name LC3993 50/75/90/150KG Parallel Beam Electronic Load Cell Miniature Planar Beam Weight Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
