SAINTBOND / LC3597 Electronic Platform Weighing Scale Load Cell Aluminum Miniature Load Cell



Share it:

LC3597 Electronic Platform Weighing Scale Load Cell Aluminum Miniature Load Cell

Product Description

LC3597

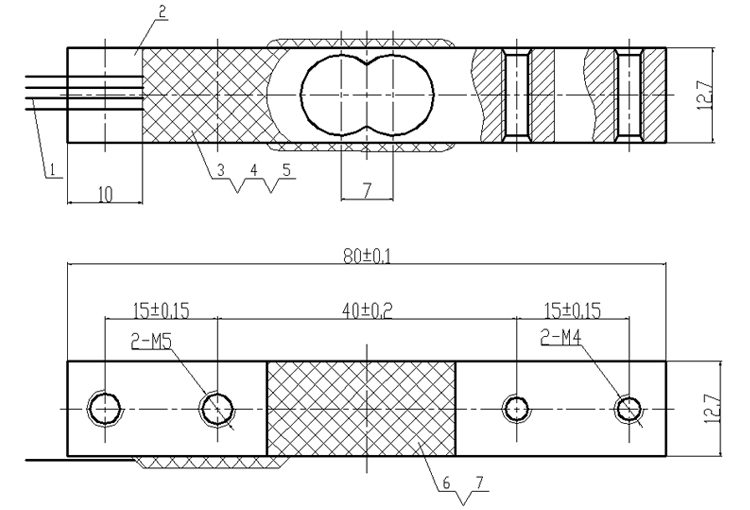

Dimensions:

LC3597

Technical Parameter:

Rated Load: 1~10kg Rated Output: -0.15±0.05mV/V
Rated Output: 1±0.1mV/V Output Resistance: 1000±5%Ω
Non-Linearity: 0.05%F.S Four angle error: 0.05%F.S
Hysteresis: 0.05%F.S Temp. Effect On Zero: 0.05%F.S/10℃
Repeatability: 0.05%F.S Temp. Effect On Span: 0.5%F.S/10℃
Creep: & 0.05%F.S/3min Dimension 80*12.7*12.7

LC3597-

Product name LC3597 Electronic Platform Weighing Scale Load Cell Aluminum Miniature Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
