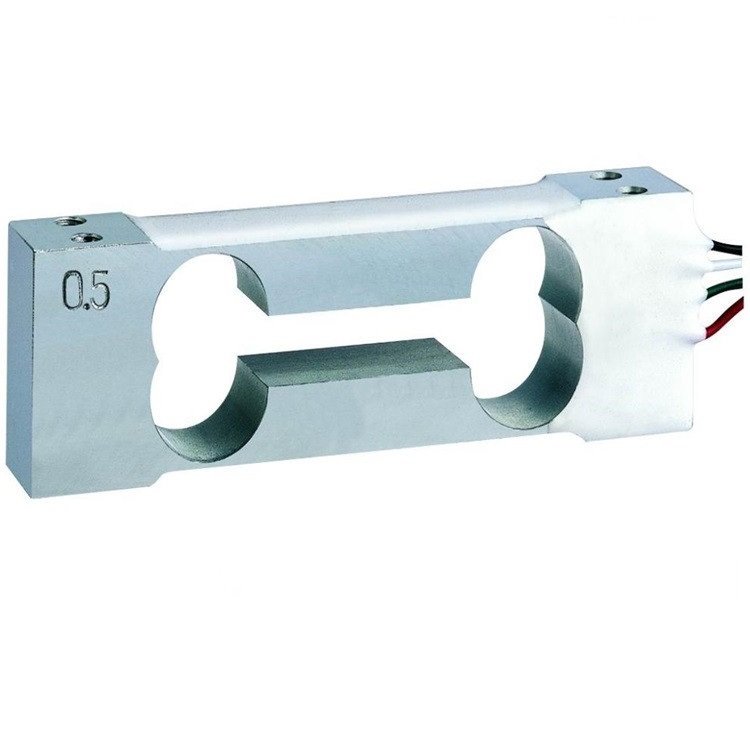

LC3524 Low Cost & High Accuracy Load Cell Single Point Aluminium Load Cell

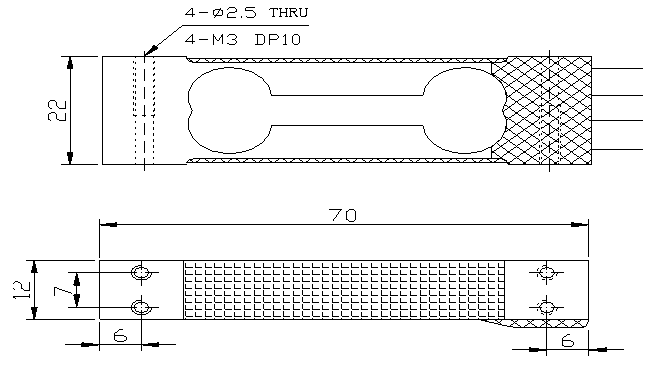

Dimensions:

Technical Parameter:
케이센서스 스마트스토어

Dimensions:

Technical Parameter:
| Capacity: | 0.3Kg~3kg | Input Resistance: | 405±10Ω |
| Outline Size: | 22×12×70 | Output Resistance: | 350±3Ω |
| Rated Output: | 1.0mv/V±10% | Insulation Resistance: | ≥5000MΩ |
| Zero Balance: | ±5%R.O. | Temperature Compensated: | -10to+40℃ |
| Non-Linearity: | ±0.02%R.O. | Operating Temp. Range: | -20to+60℃ |
| Hysteresis, Non-Repeatability: | ±0.015%R.O. | Recommend Excitation Vol.: | 5~12VDC |
| Creep(30 Minute): | ±0.03%R.O. | Maximum Excitation Vol.: | 18VDC |
| Temp.Compensated For Output: | ±0.03%R.O./10℃ | Safe Overload: | 150%.R.C |
| Temp.Compensated For Zero: | ±0.03%R.O./10℃ | Cable: | 19cm(φ0.8mm) |
| Product name | LC3524 Low Cost & High Accuracy Load Cell Single Point Aluminium Load Cells |
| Brand | SAINTBOND |
| Market | All over the world |
| Features | High precision and stable performance |
| Advantage | 0EM/ODM |
| Sample Lead Time | 5~ 40Days |
| Sample price | The price is different according to product capacity |
| Custom Design | Welcome |
| Form of sale | Factory supply |
