SAINTBOND / LC3512 Low Profile Compression Beam Load Cell Parallel Beam Type Load Cell



Share it:

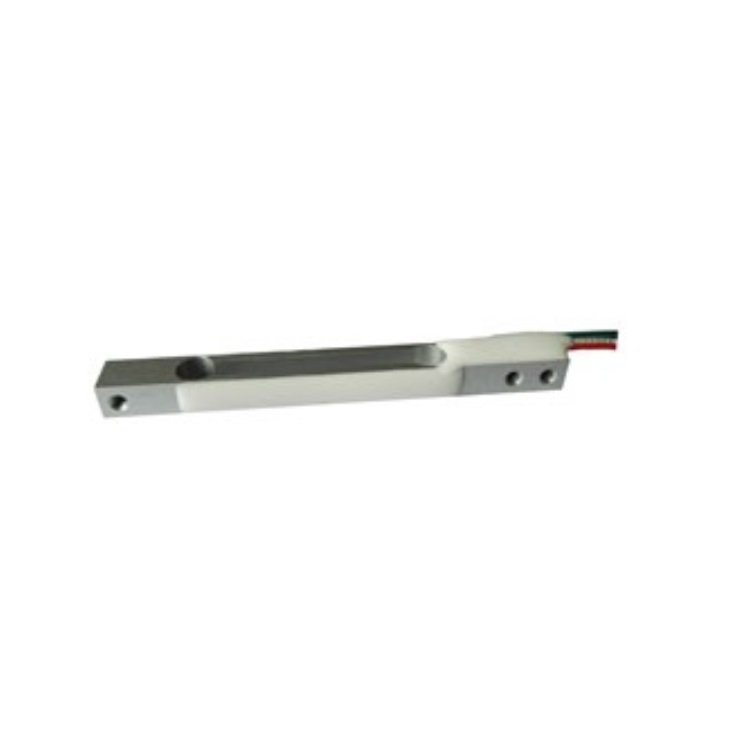

LC3512 Low Profile Compression Beam Load Cell Parallel Beam Type Load Cell

Product Description

LC3512

Product Description:

The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.



Dimension:

LC3512

Specification:

Precision :0.03-0.1Kg  Temp. effect on span(%F.S/10℃): ±0.05
Comprehensive error(%F.S) : ±0.03  Temp. effect on zero(%F.S/10℃) : ±0.05
Rated output(mv/v) : 0.5±0.15  Compensated temp. range(℃ ) : -10~+40
Creep(%F.S/30min) : ±0.03  Use temp. range(℃ ) : -20~+60
Zero balance(%F.S) : ±10  Excitation voltage(V) : 10(DC)
Input resistance(Ω) : 1000±10  Safe overload (%F.S) : 120
Output resistance(Ω) : 1000±10  Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) :   ≥5000(100VDC)  Defend grade : IP65



Product name LC3512 Low Profile Compression Beam Load Cell Parallel Beam Type Load Cell
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
