SAINTBOND / LC3511 Single Point Load Cell Planar Beam Load Cell Sensor



Share it:

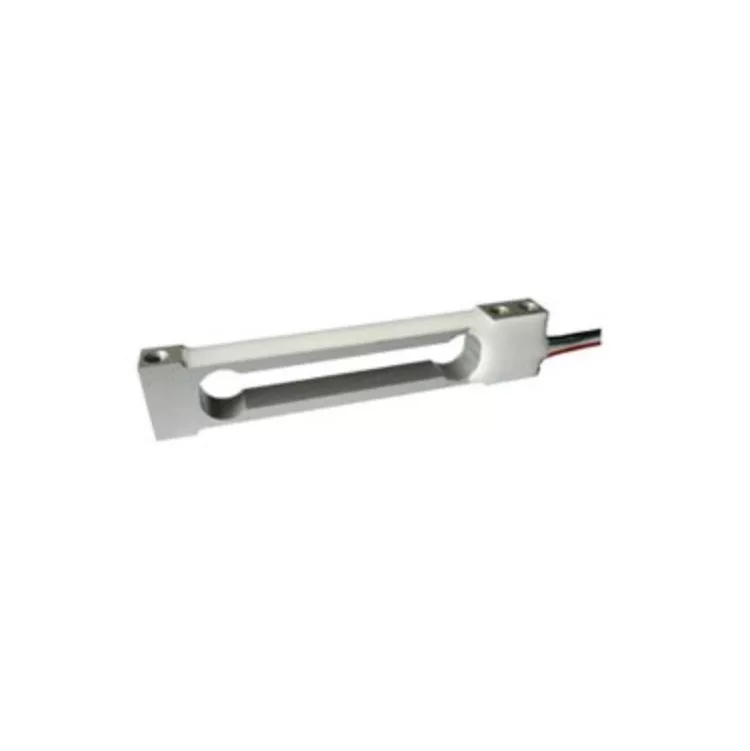

LC3511 Single Point Load Cell Planar Beam Load Cell Sensor

Product Description

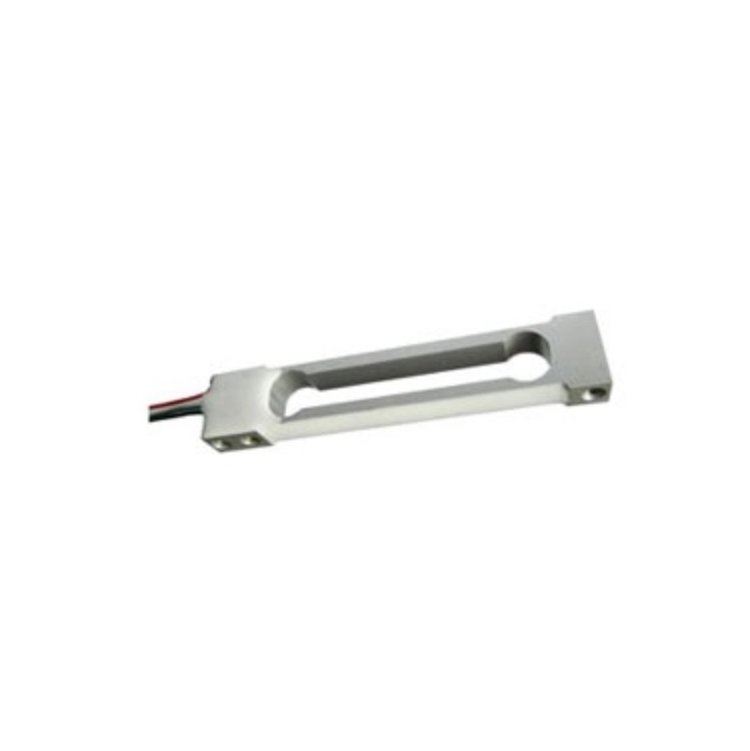

LC3511-1



Product Description:

The product is made of alloy aluminum. It is hermetically sealed with glue to IP65, surface anodized and anti-corrosion, integral structure and easy installation.

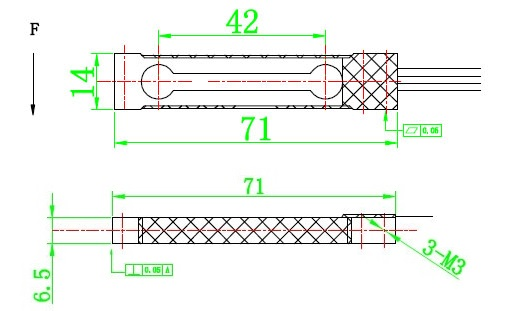

Dimension:

LC3511

Specification:

Capacity:0.05/0.1kg  Temp. effect on span(%F.S/10℃): ±0.05
Comprehensive error(%F.S) : ±0.05  Temp. effect on zero(%F.S/10℃) : ±0.05
Rated output(mv/v) : 0.6±0.15  Compensated temp. range(℃ ) : -10~+40
Creep(%F.S/30min) : ±0.05  Use temp. range(℃ ) : -20~+60
Zero balance(%F.S) : ±0.5  Excitation voltage(V) : 10(DC)
Input resistance(Ω) : 1000±5  Safe overload (%F.S) : 120
Output resistance(Ω) : 1000±5  Ultimate overload (%F.S) : 150
Insulation resistance(MΩ) : ≥5000(100VDC)  Defend grade : IP65



Product name LC3511 Single Point Load Cell Planar Beam Load Cell Sensor
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
