SAINTBOND / LC339M5 China Bellow Type Load Cell Bending Beam Load Cell Mounting 10/20/30/50/75/100/150/200/250/300/500kg

Add to Wishlist
Share it:

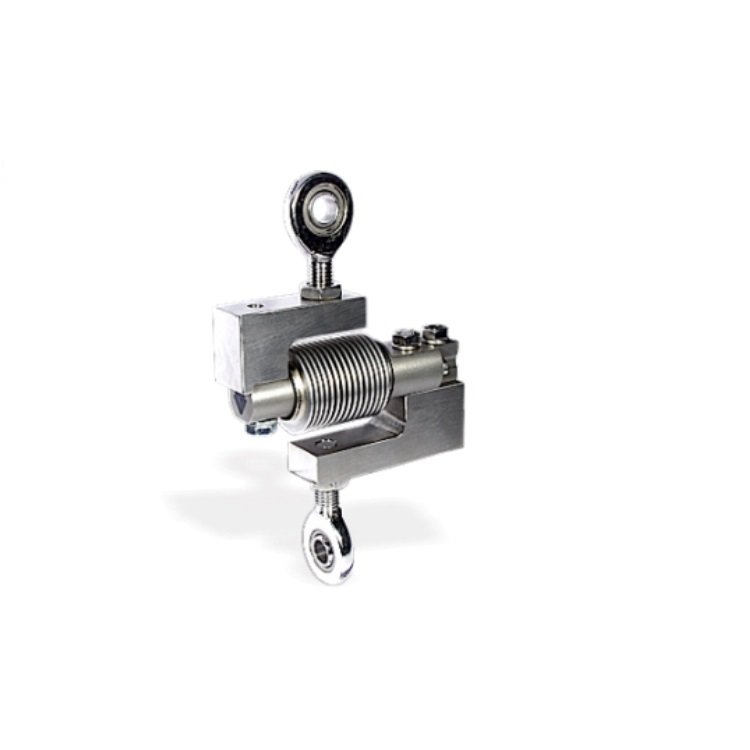

LC339M5 China Bellow Type Load Cell Bending Beam Load Cell Mounting 10/20/30/50/75/100/150/200/250/300/500kg

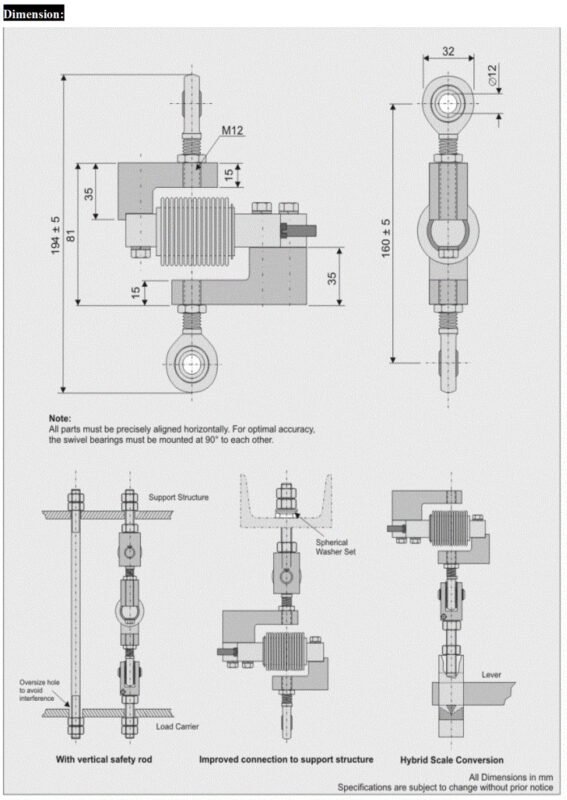

LC339M5LC339M5_02

Products Specification:

◎Self aligning, reduces the effect of side loads;

◎Ensures optimum performance from the load cell;

◎Suitable for use on capacity ranges up to 500kg;

◎Ideal for tank and silo weighing;

◎Built-in jacking facility & lift off prevention;

◎Easy fitting & removal of the load cell;

◎Manufactured from stainless steel;

◎Integral cable protection plate;



Technical Parameter:

Rated Load: 10/20/30/50/75/100/150/200/250/300/500kg
Sensitivity: (2.0±0.1%) m V/V Operating Temp. Range: -10~+70℃
Combined Error: ±0.02% F.S Maximum Safe Over Load: 150%F.S
Creep Error(30min): ±0.03% F.S Ultimate Over Load:: 300%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Temp. Effect On Zero: ±0.02% F.S/10℃ Maximum Excitation Vol.: 15V DC
Temp. Effect On Span: ±0.02% F.S/10℃ Sealing Class: IP68
Input Resistance: 385±5Ω Element Material: Alloy Steel, Stainless Steel
Output Resistance: 351±2Ω Cable: Length=L:3m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60
Mode Of Connection: Red(Input+),Black(Input-), Green(Output+),White(Output-)

LC332_02LC332_03



Product name LC339M5 China Bellow Type Load Cell Bending Beam Load Cell Mounting 10/20/30/50/75/100/150/200/250/300/500kg
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
