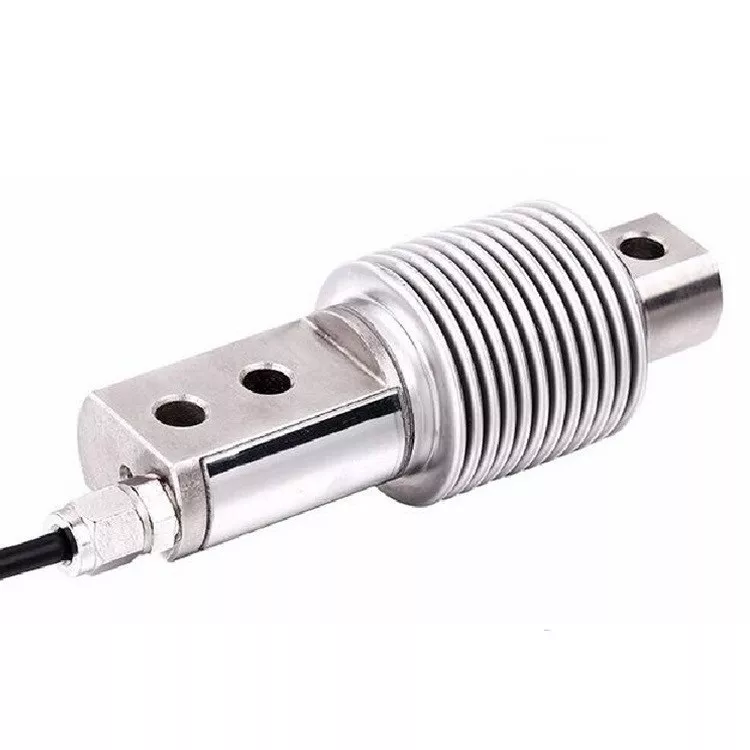

SAINTBOND / LC338 Bellow Weight Sensor Beam And Bending Beam Shear Load Cell

LC338 Bellow Weight Sensor Beam And Bending Beam Shear Load Cell

LC338

Products Specification:

lLC338 are available in the capacities 10kg to 1000kg. And the customized cap.is available by request.

lAlloy steel construction,welded with bellow,potted by adhesive inside,oil-proof,waterproof and anti-corrosive gas and medium making it suitable for all kinds of environments.

lSingle point with bellow, easy installation,suitable for crane scales,mechanical conversion scales,hopper scales and other electronic weighing devices.

lSafe and anti-explosive product, can be used in atrocious environment and hazardous areas.

Dimensions Unit: mm:

Cap/Size	L	L1	L2	L3	L4	D
25-50kg	152	22	12	52	42	8.5
100-500kg	168	28	19	62	48	11
750~1000kg	210	40	22	70	56	13

LC338_01

Technical Parameter:

Rated Load:	10/20/30/50/75/100/150/200/250/300/500/700/1000kg
Sensitivity:	(2.0±0.1%) m V/V	Operating Temp. Range:	-10~+70℃
Combined Error:	±0.02% F.S	Maximum Safe Over Load:	150%F.S
Creep Error(30min):	±0.03% F.S	Ultimate Over Load::	300%F.S
Zero Balance:	±1% F.S	Recommend Excitation Vol.:	10~12V DC
Temp. Effect On Zero:	±0.02% F.S/10℃	Maximum Excitation Vol.:	15V DC
Temp. Effect On Span:	±0.02% F.S/10℃	Sealing Class:	IP68
Input Resistance:	385±5Ω	Element Material:	Alloy Steel, Stainless Steel
Output Resistance:	351±2Ω	Cable:	Length=L:3m
Insulation Resistance:	≥5000MΩ	Citation:	GB/T7551-2008/ OIML R60
Mode Of Connection:	Red(Input+),Black(Input-),Green(Output+),White(Output-)

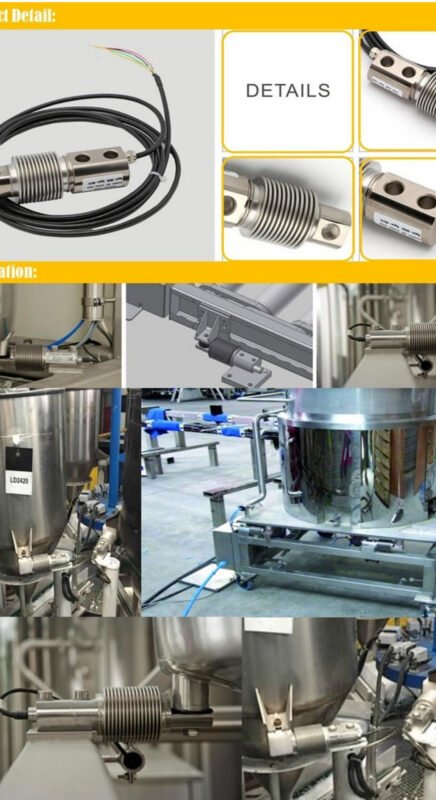

LC332_02 LC332_03

圣邦网站1详情页_05

Product name	LC338 Bellow Weight Sensor Beam And Bending Beam Shear Load Cell 10/20/30/50/75/100/150/200/250/300/500/700/1000KG
Brand	SAINTBOND
Market	All over the world
Features	High precision and stable performance
Advantage	0EM/ODM
Sample Lead Time	5~ 40Days
Sample price	The price is different according to product capacity
Custom Design	Welcome
Form of sale	Factory supply
