LC2001 Universal 50kN S-type Load Cell Weighing Sensor for Scales

Product Description

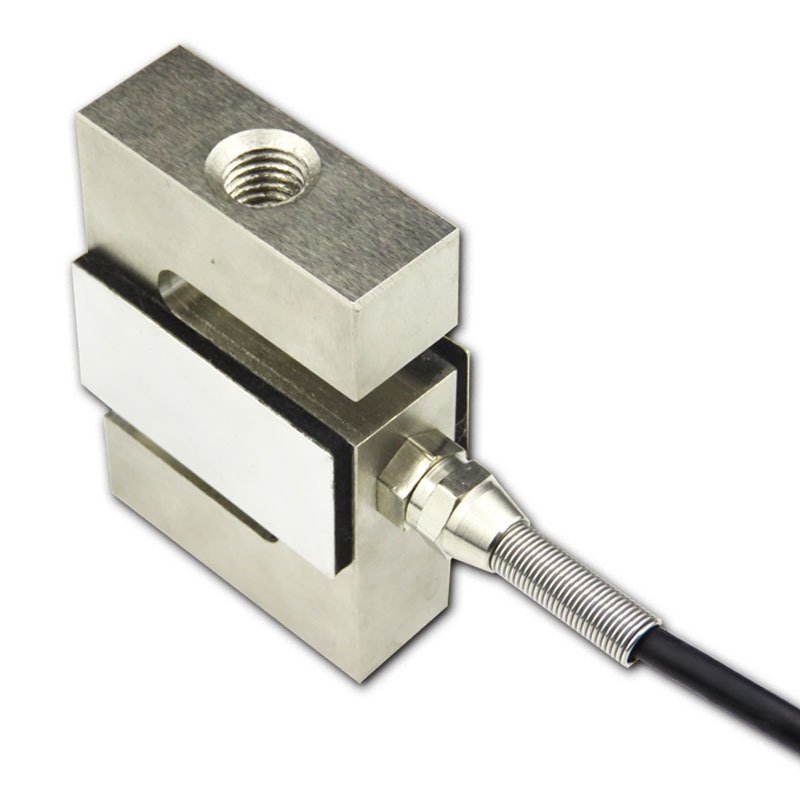

LC2001-4

Product Description::

Model LC2001 is a tension-compression load cell with a humidity-resistant coating and shielded cables, which enable use in harsh environments while maintaining operating specifications. Additional sense wires compensate for changes in lead resistance due to temperature change and/or cable extension.Ideally suited for lever conversions, hanging scales, force measurement and a wide range of other industrial applications. Nickel-plated for outstanding corrosion resistance.



Application:

lTank, bin and hopper weighing;

lLevel and inventory monitoring;

lTruck scale conversions;

lTension and compression measurements ;



Dimension:

LC2001

Capacity A B C D E Deflection Weight
25-200lb 1/4-28 UNF-2B 0.65 0.50 2.00 2.50 0.015-0.010 4.0
250-300lb 3/8-24 UNF-2B 0.75 0.50 2.00 3.00 0.01 4.0
500-2klb 1/2-20 UNF-2B 1.00 0.75 2.00 3.00 0.010-0.012 6.5
2.5k-4klb 1/2-20 UNF-2B 1.25 1.00 2.00 3.00 0.012 6.5
5klb 3/4-16 UNF-2B 1.25 1.00 3.00 4.25 0.017 6.5
10klb 3/4-16 UNF-2B 1.25 1.00 3.50 4.75 0.025 6.5
15klb 1-14 UNF-2B 1.50 1.25 4.00 5.50 0.025 9.0
20klb 1-1/4-12 UNF-2-B 2.25 2.00 5.00 7.00 0.025 9.0
50-100kg M8.0×1.25-6H [16.5] [12.7] [50.8] [63.5] [0.03-0.004] [0.8]
250kg-1t M12×1.75-6H [25.4] [19.1] [50.8] [76.01] [0.004] [1.8]
2.5t M20×1.5-6H [31.8] [25.4] [76.2] [108.0] [0.008] [2.9]
5t M20 × 1.5-6H [31.8] [25.4] [88.9] [120.7] [0.011] [2.9]
10t M30×2.0-6H 157.2] [50.8] [127.0] [177.8] [0.011] [4.0]
Capacities are in pounds[kg/T].Deflection is ±10%.Certified drawings are available.



Technical Parameter:

Capacity: 50/100/250/500/1000/2500/5000/7500/10000kg

50/75/100/150/200/250/300/500/750lb+1/1.5/2/3/5/10/15/20klb
Rated Output 2.0mV/V ±0.1% Safe Temp. Range -10ºC to + 70ºC
Zero Balance ±1% of FS Temp. Compensated -10ºC to + 40ºC
Creep after 30 minutes ±0.03% of FS Safe Overload 1.5
Nonlinearity ±0.03% of FS Input Impedance 350 ohm ± 20 ohm
Hysteresis ±0.03% of FS Output Impedance 350 ohm ± 5 ohm
Repeatability ±0.03% of FS Insulation Resistance ≥5000 M ohm (50V DC)
Temp. effect on output ≤0.002% of FS/ºC Rated Excitation 10V DC/AC
Temp. effect on zero ≤0.002% of FS/ºC Maximum Excitation 15V DC/AC
Wire Length 6m Material Alloy/stainless steel



Product name LC2001 Universal 50kN S-type Load Cell Weighing Sensor for Scales
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
