SAINTBOND / LC111 Digital Compression Load Cell Weighbridge Double Ended Shear Beam Load Cells

Add to Wishlist
Share it:

LC111 Digital Compression Load Cell Weighbridge Double Ended Shear Beam Load Cells

Product Description

LC111-2

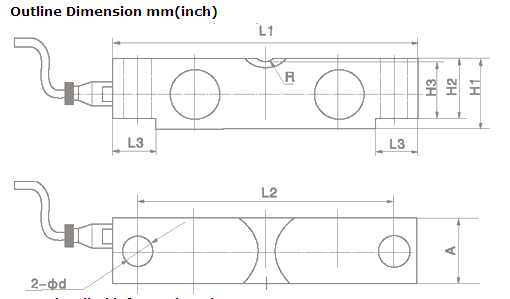

Dimension in mm

LC111

Size/ Cap. L1 L2 L3 H1 H2 H3 A Dia:d R
25Klb 197 165 35 49.3 43.2 41.4 43 17.3 19.1
40Klb 260.4 216 49.3 62 53.3 50.8 49.3 20.6 25.4
50~75Klb 260.4 216 49 74.7 67.3 64.5 62 26.9 25.4
100~125Klb 387.4 324 79.5 98 87.1 83.8 73.7 41.2 38.1
150~200Klb 489 387.4 127.8 147.3 130.1 112.8 96.5 41.2 50.8



Technical Parameter:

Rated Load: 25/40/50/60/65/75/100/125/150/200klb
Sensitivity: (3.0±0.1%) mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.03% F.S Maximum Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation Vol.: 10~12V DC
Tco: ±0.02% F.S/10℃ Max. Excitation Vol.: 15V DC
Tc Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 750±5Ω Element Material: Alloy Steel, Stainless Steel
Output Resistance: 702±3Ω Cable: Length=L:12m(10~40klb,5~15t),

16m(50~75klb,20~40t)
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60



Product name LC111 Digital Compression Load Cell Weighbridge Double Ended Shear Beam Load Cells
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
