SAINTBOND / LC101 Top Double Ended Beam Load Cell Double Shear Beam Load Cells

Add to Wishlist
Share it:

LC101 Top Double Ended Beam Load Cell Double Shear Beam Load Cells

Product Description

LC101

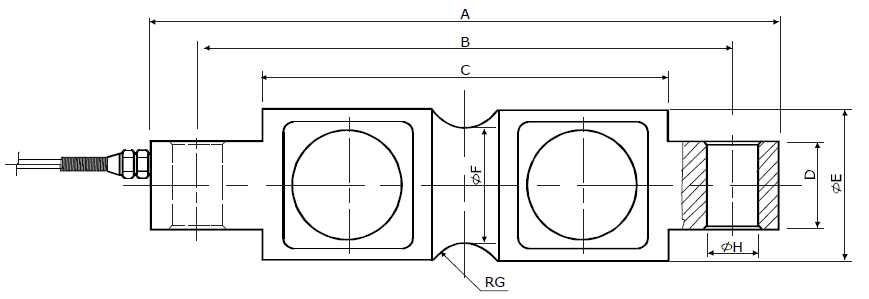

Dimensions: Unit: mm(1mm=0.03937inch)

LC101

Cap./Size A B C D E F G H
5~10klb 206.3 174.8 133.1 28.5 43.2 37.6 12.7 16.8
20klb 206.3 174.8 133.1 28.5 49.3 37.6 12.7 16.8
30~60klb 260.4 215.9 164.8 60.2 76.2 69.3 25.4 26.9
100klb 285.8 241.3 190.2 63.5 95.3 82.3 25.4 26.9
150klb 285.8 241.3 190.2 71.1 99.1 92.5 38.1 26.9
200~250klb 409.0 330.2 254.0 116.8 136.7 131.1 50.8 39.6



Products Specification:

lLC101 load cell are available in the capacities 5Klb to 200Klb.

lAlloy steel construction, potted by adhesive inside, oil-proof, waterproof anti-corrosive gas or medium making it suitable for all kinds of environments.

lDual shear beam, easy installation, suitable for electronic truck scales, track scales, automobile testing facilities and other electronic weighing devices.



Technical Parameter:

Rated Load: 5/10/20/30/60/100/150/200/250klb
Sensitivity: (2.0±0.1%) mV/V Operating Temp. Range: -30~+70℃
Combined Error: ±0.03% F.S Maximum Safe Over Load: 150%F.S
Creep Error(30min): ±0.02% F.S Ultimate Over Load: 250%F.S
Zero Balance: ±1% F.S Recommend Excitation: 10~12V DC
Tco: ±0.02% F.S/10℃ Maximum Excitation: 15V DC
Tc Span: ±0.02% F.S/10℃ Sealing Class: IP67/IP68
Input Resistance: 750±5Ω Element Material: A: Alloy Steel, SS: Stainless Steel
Output Resistance: 703±2Ω Cable: Length=L:12m
Insulation Resistance: ≥5000MΩ Citation: GB/T7551-2008/ OIML R60



Product name LC101 Top Double Ended Beam Load Cell Double Shear Beam Load Cells
Brand SAINTBOND
Market All over the world
Features High precision and stable performance
Advantage 0EM/ODM
Sample Lead Time 5~ 40Days
Sample price The price is different according to product capacity
Custom Design Welcome
Form of sale Factory supply
