Models
R520S-1t, R520S-2.2t, R520S-4.7t, R520S-10t, R520S-15t, R520S-22t, R520S-33t, R520S-47t, R520S-68t, R520S-100t, R520S-150t, R520S-220t, R520S-330t, R520S-470t
Features
- 용량：1~470t
- 재질 : Alloy steel
- 타입 : Compression
- 보호등급 : IP68
- 트럭 저울 및 대형 호퍼 저울에 적합

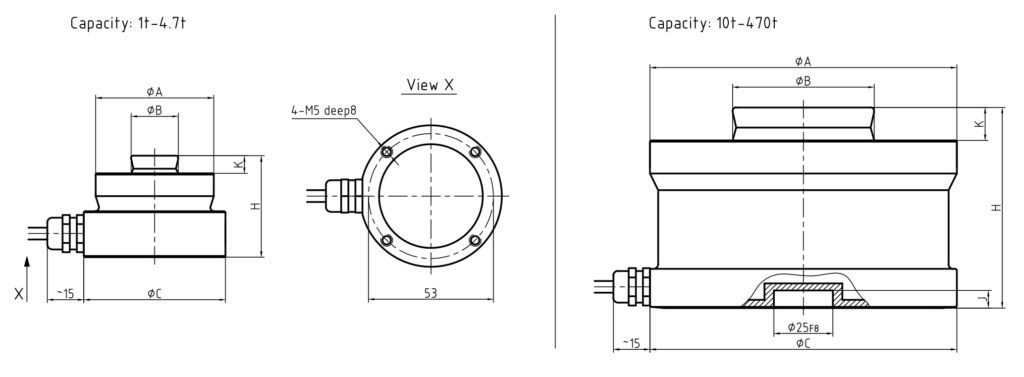

Dimensions
| Capacity | A | B | C | H | J | K |
| 1t | 50 | 20 | 60 | 43 | – | 7.5 |
| 2.2t | 50 | 20 | 60 | 43 | – | 7.5 |
| 4.7t | 50 | 20 | 60 | 43 | – | 7.5 |
| 10t | 75 | 30 | 75 | 50 | 7 | 6.5 |
| 15t | 75 | 30 | 75 | 50 | 7 | 6.5 |
| 22t | 75 | 30 | 75 | 50 | 7 | 6.5 |
| 33t | 95 | 40 | 95 | 65 | 7 | 10 |
| 47t | 130 | 60 | 130 | 75 | 7 | 14 |
| 68t | 130 | 60 | 130 | 85 | 7 | 14 |
| 100t | 150 | 70 | 150 | 90 | 7 | 16 |
| 150t | 150 | 70 | 150 | 100 | 7 | 16 |
| 220t | 225 | 100 | 225 | 130 | 10 | 24 |
| 330t | 225 | 100 | 225 | 145 | 10 | 24 |
| 470t | 270 | 100 | 270 | 170 | 10 | 28 |

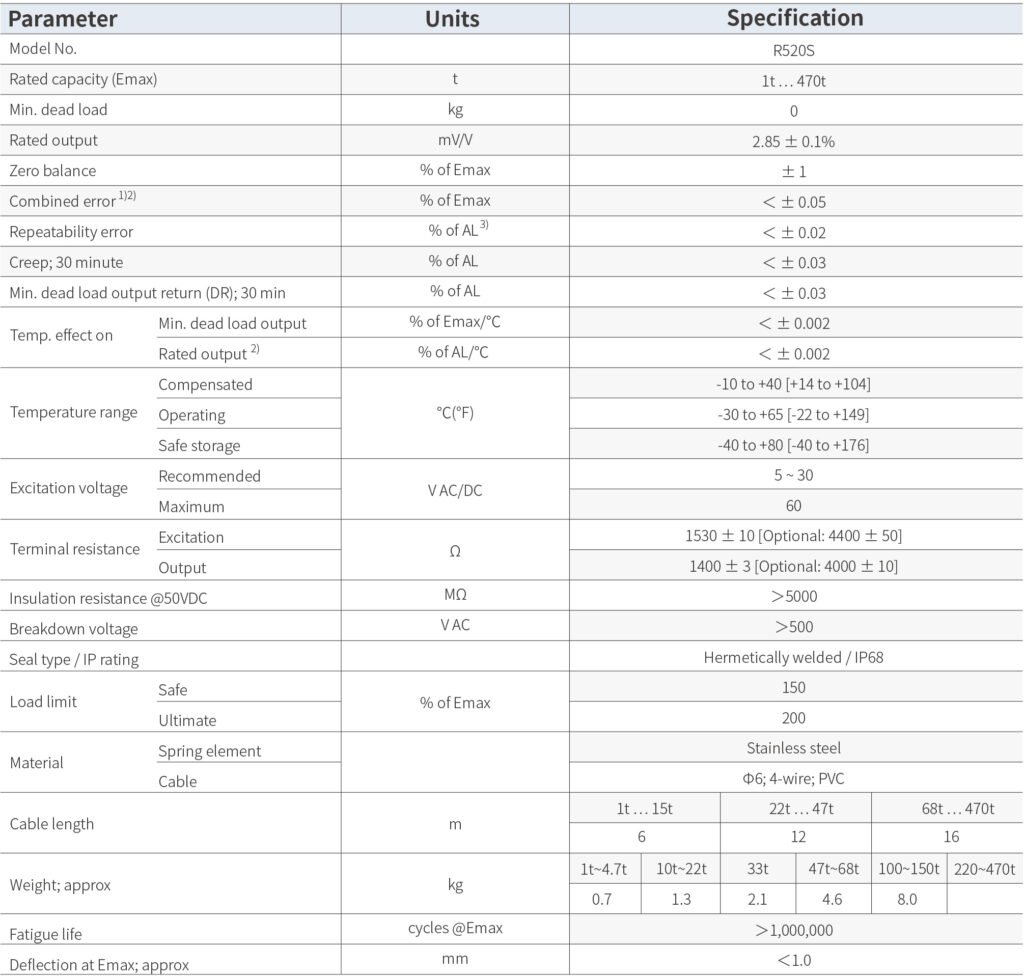

Specifications
