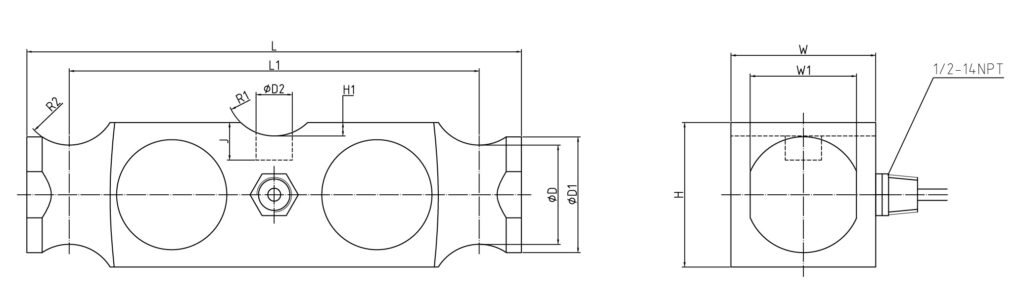

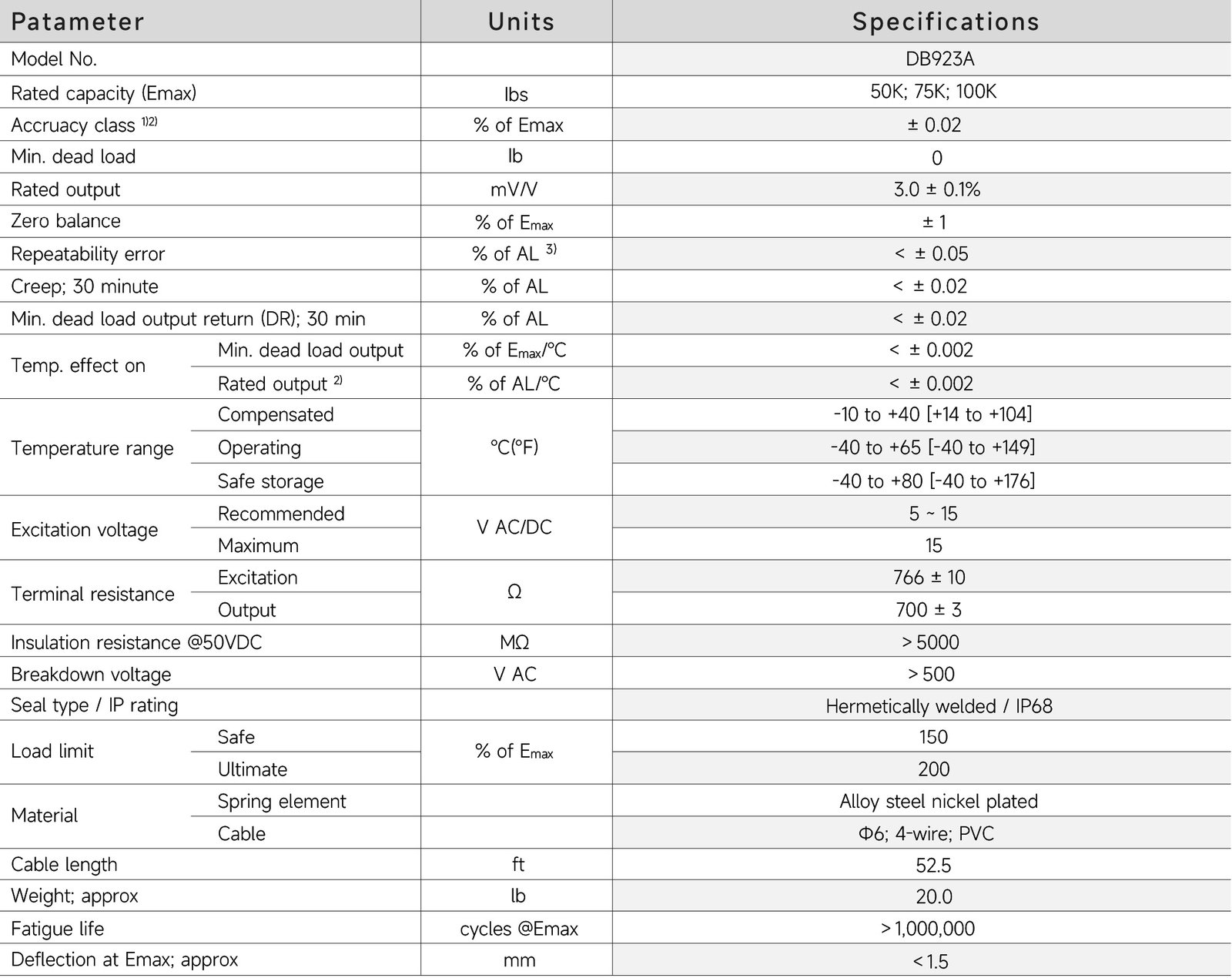

DB923A-50klb, DB923A-75klb, DB923A-100klb
| Capacity(inches) | L | L1 | W | W1 | H | H1 | D | D1 | D2 | J | R1 | R2 |
| 50~100klb | 10.25 | 8.50 | 3.00 | 2.20 | 3.00 | 0.28 | 2.06 | 2.40 | 0.75 | 0.78 | 1.00 | 1.00 |
용량：15t
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
Capacity: 100–1,000 kg
Material: Alloy steel
Type: S-Type
Protection Rating: IP67
Suitable for crane scales, hopper scales, transmitters, and other electronic weighing equipment.
용량：50, 100, 200, 300, 500, 1000kg, 2, 3, 5t
재질 : Alloy steel (Metric thread)
타입 : S-Beam
보호등급 : IP66/lP68
용량：10, 25, 40, 50, 75, 100, 200klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
용량：0.5, 1, 2, 3, 5t
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
Features
용량：60, 100, 200, 300kg
재질 : Aluminum
타입 :Single Point
보호등급 : IP66
Features
용량：1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel, stainless steel optional.
타입 : Single-Ended Beam
보호등급 : IP68
Capacity: 60–200 kg
Material: Stainless steel
Type: Single Point
Protection Rating: IP68 / IP69K
Suitable for stainless steel waterproof scales and process weighing control in the chemical, food, and pharmaceutical industries.
용량：25, 40, 50, 75, 100klb
재질 : Alloy steel
타입 : Double-Ended Shear Beam
보호등급 : IP68
Features
용량：500, 1000,2000kg
재질 : Alloy steel, stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67, IP68
