Models
B535S-0.55t, B535S-1.1t, B535S-1.76t, B535S-2.2t, B535S-4.4t, B735S-0.55t, B735S-1.1t, B735S-1.76t, B735S-2.2t, B735S-4.4t
Features
- Capacity: 550 kg–4.4 t
- Material: High-quality stainless steel
- Type: Shear Beam
- Protection Rating: IP68
Suitable for platform scales, dosing systems, and process control applications in the chemical, food, pharmaceutical, and other industrial sectors.
Dimensions
| Capacity(mm) | L | L1 | L2 | L3 | L4 | W | H | d | D | M | N |
| 0.55~1.1t | 133.4 | 15.4 | 76.2 | 25.4 | 57.7 | 30.7 | 30.2 | 13.0 | 20.6 | M12*1.75 | 14.2 |
| 1.76t | 133.4 | 15.4 | 76.2 | 25.4 | 51.7 | 30.7 | 30.2 | 13.0 | 20.6 | M12*1.75 | 14.2 |
| 2.2t | 171.5 | 19.1 | 95.3 | 38.1 | 76.2 | 36.8 | 36.6 | 20.5 | 30.2 | M20*2.5 | 17.0 |
| 4.4t | 171.5 | 19.1 | 95.3 | 38.1 | 76.2 | 42.9 | 42.9 | 20.5 | 30.2 | M20*2.5 | 20.1 |

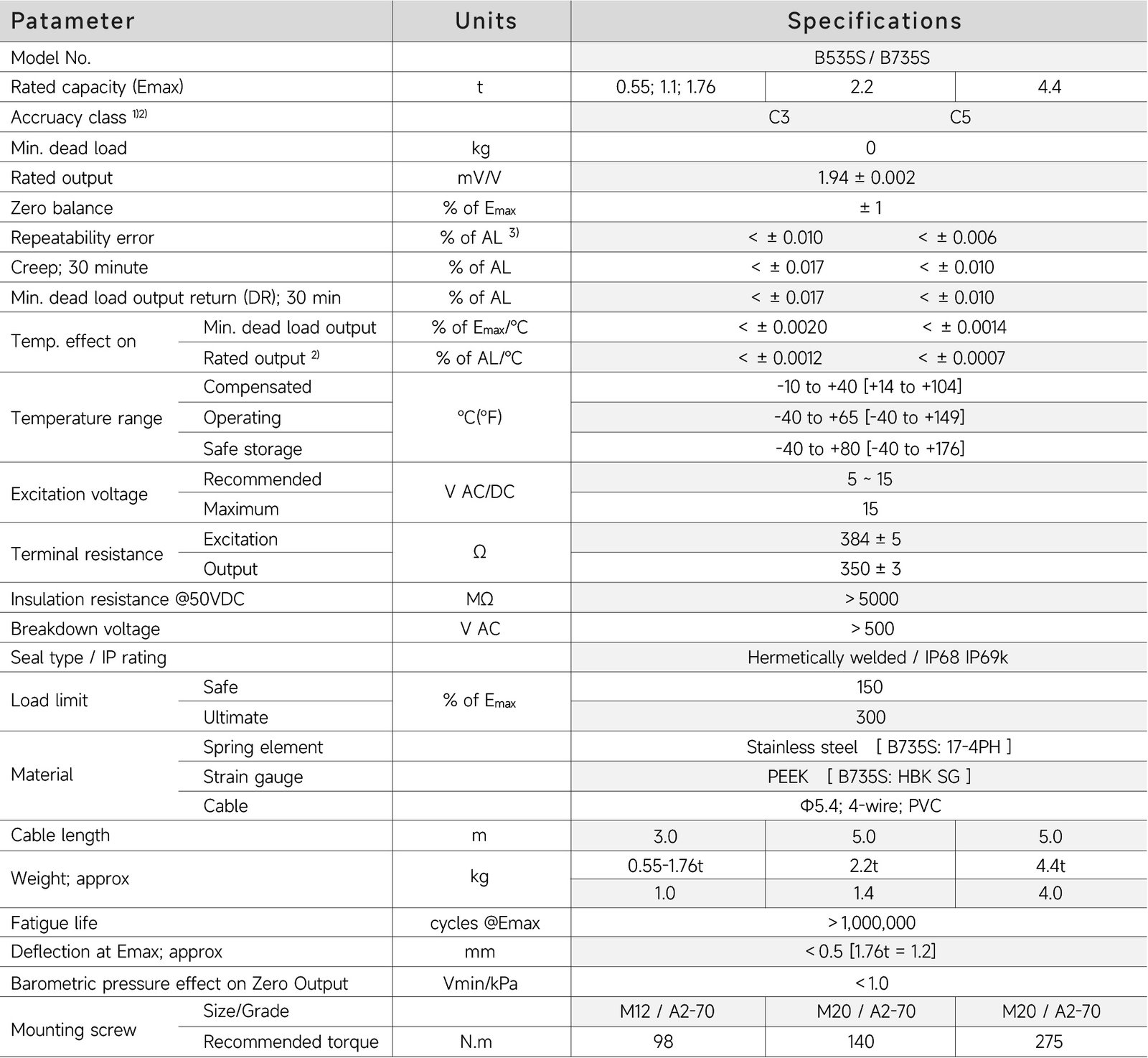

Specifications
