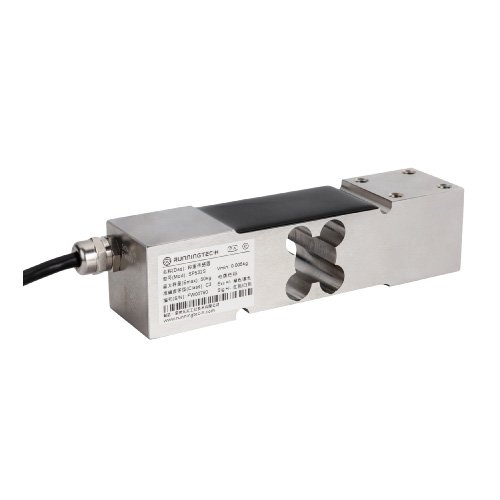

Models
SP532S-50kg, SP532S-100kg, SP532S-300kg
Features
- 용량：50~300kg
- 재질 : stainless steel
- 타입 : Single Point
- 보호등급 : IP67
- 벤치 저울, 포장 및 등급 기계, 백 충전 장비, 병 충전 기계 및 기타 공정 계량 등에 적합

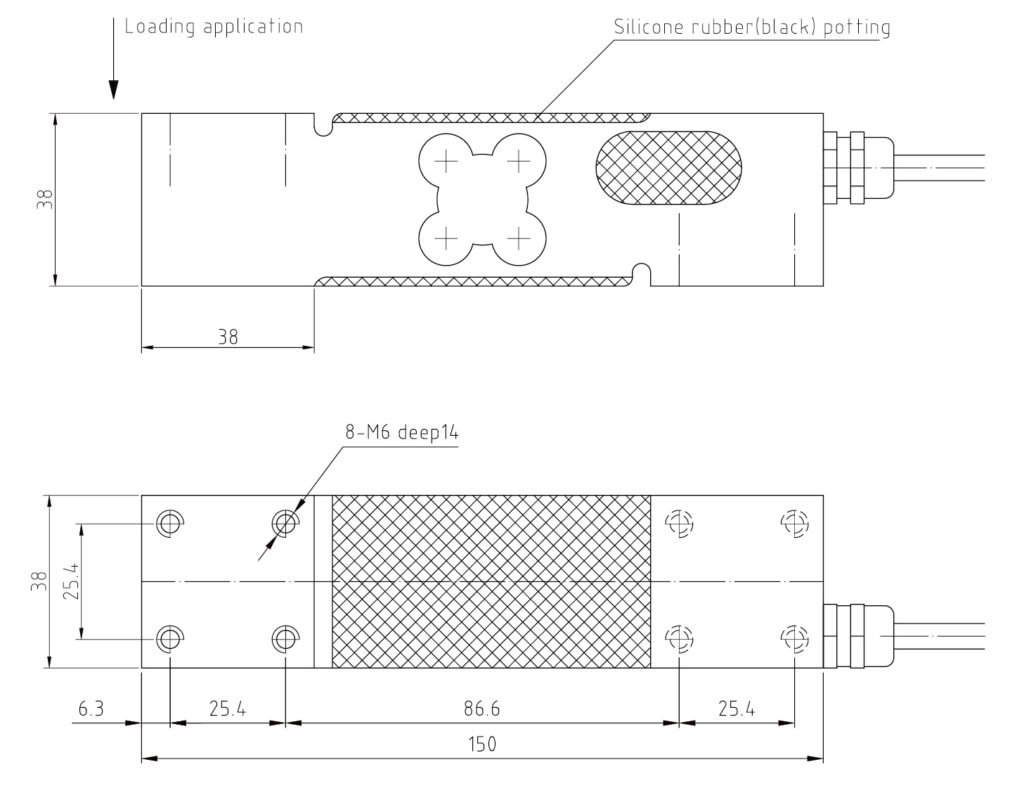

Dimensions

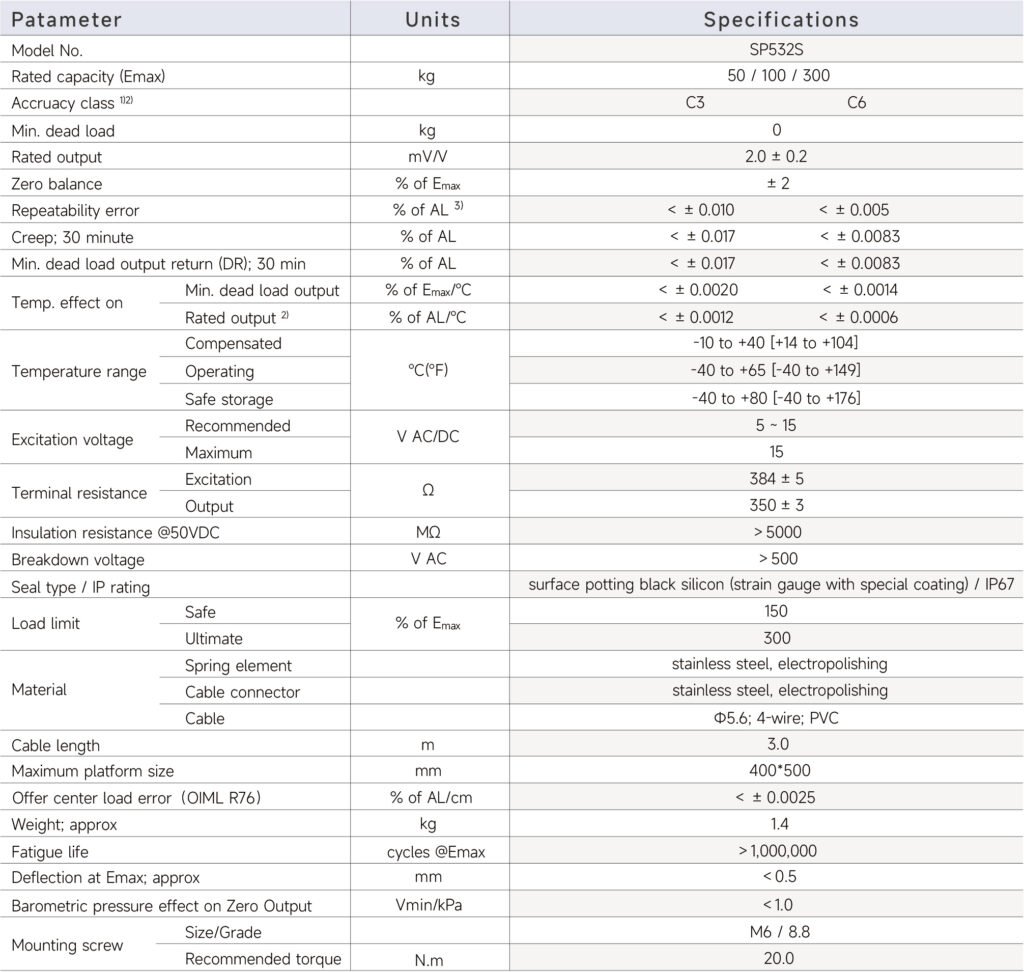

Specifications
-
Compact design supports legal-for-trade weighing for large scales, even in harsh environments
-
C3MR accuracy class ensures precise weighing across the 50 kg – 300 kg range
-
Mountable with four fixing screws and supports platforms up to 600 × 500 mm
-
IP67 protection rating, with optional explosion-proof version available
-
NEW: Available with LCMC measurement chain – smart option (IO-Link), digital option (CANopen or RS-485), and analog option (4–20 mA / 0–10 V)
이 제품은 낮은 높이와 높은 안정성, 정밀성을 갖춘 구조로 설계되었으며, 다양한 계량 및 자동화 테스트 장비에 폭넓게 활용됩니다.
Высокая стабильность, поддержка различных способов установки, возможность нестандартного изготовления по заказу, стабильный помехоустойчивый сигнал, изготовлен из высококачественной легированной стали. Широко используется для взвешивания и дозирования в реакторах, бункерах, силосах, танк-контейнерах, цементных заводах, а также в химической, фармацевтической и пищевой промышленности.
A882 Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
Specification: 20kg, 40kg, 80kg, 10kg
Изготовлена из легированной стали, герметизирована клеем и никелирована; модель обладает водонепроницаемостью и коррозионной стойкостью, обеспечивает степень защиты IP66.
A803 Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
Specification: 350kg
Изготовленная из легированной стали, герметизированная клеем и никелированная модель обладает высокой водонепроницаемостью и коррозионной стойкостью, имеет степень защиты IP66.
A642F Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
Specification: 100kg, 200kg, 300kg, 500kg
LC8022 is a small-range, small-volume, high-precision single-point weighing sensor. Made of aluminum alloy. the four corner deviations have been adjusted to ensure high weighing accuracy, anodized surface, and IP66 protection level. The sensor is suitable for electronic scales, medical equipment, and industrial process control.
A806 Load Cell are well-crafted, beautiful in appearance, and have both excellent performance and excellent quality. Once they are on the market, they have quickly been loved and sought after by the majority of customers.
Эластомер сенсора изготовлен из алюминиевого сплава, герметизирован клеем, поверхность обработана прозрачным анодированием. Степень защиты достигает IP65.
