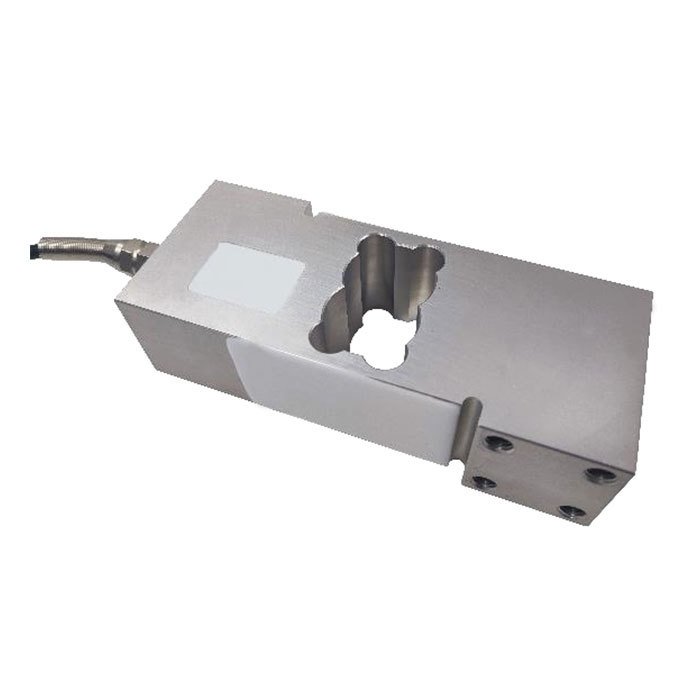

RJ-6555 Cantilever beam Load Cell
Technical parameters
| Measuring range | Kg | 100/200 |
| Sensitivity | mV/V | 2.0±0.2 |
| Accuracy | %FS | ±0.02 |
| Creep | %FS | ±0.015 |
| Input impedance | Ω | 406±20 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000 (100VDC) |
| Zero balance | %FS | ±1 |
| Temperature effect on sensitivity | %FS/10℃ | ±0.015 |
| Temperature effect on zero | %FS/10℃ | ±0.015 |
| Compensation temperature range | ℃ | -10～+40 |
| Operating temperature range | ℃ | -20～+60 |
| Recommended excitation voltage | Vdc | 6～12 |
| Permissible excitation voltage | Vdc | 18 |
| Safe overload | %FS | 120 |
| Limit overload | %FS | 150 |
| Protection level | IP65 | |
| Material | Aluminum Alloy | |
Dimensions (mm)

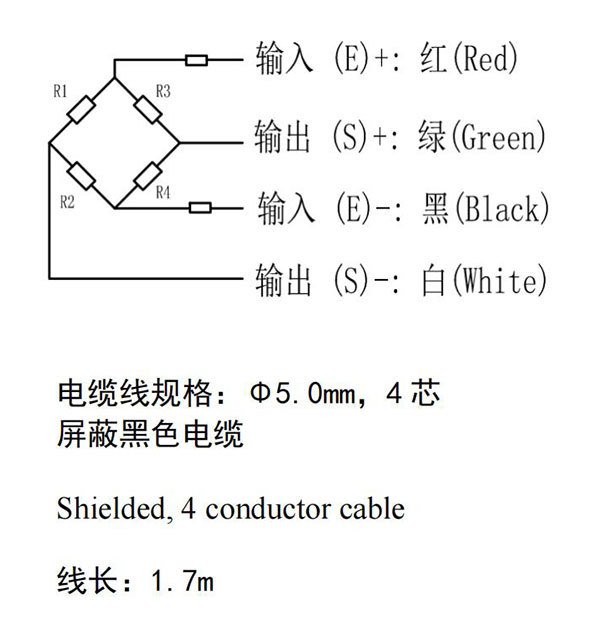

Circuit connection
