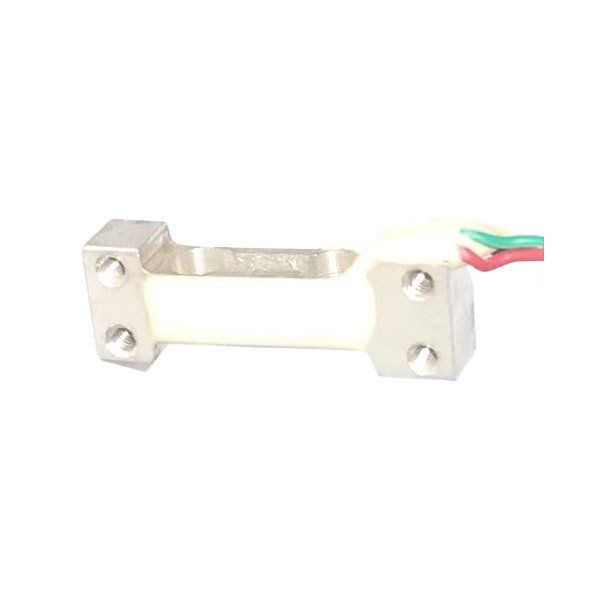

RJ-65112 Cantilever beam Load Cell
Technical parameters
| Measuring range | g | 100/200/300 |
| Sensitivity | mV/V | 1.0±0.2 |
| Accuracy | %FS | ±0.05 |
| Creep | %FS | ±0.02 |
| Input impedance | Ω | 395±30 |
| Output impedance | Ω | 350±10 |
| Insulation resistance | M Ω | ≥5000 (100VDC) |
| Zero balance | %FS | ±2 |
| Temperature effect on sensitivity | %FS/ 10℃ | ±0.05 |
| Temperature effect on zero | %FS/ 10℃ | ±0.05 |
| Compensation temperature range | ℃ | -10～+40 |
| Operating temperature range | ℃ | -20～+60 |
| Recommended excitation voltage | V | 6～12 |
| Permissible excitation voltage | V | 18 |
| Safe overload | %FS | 120 |
| Limit overload | %FS | 150 |
| Protection level | IP65 | |
| Cable specifications | mm | Ф1 Electronic Wiring |
| Cable length | m | 0.4 |
| Material | Aluminum Alloy |
Dimensions (mm)
Circuit connection
