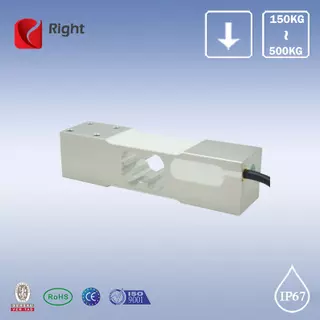

Right / T721E / Electronic Balance Load Cell

Widely used in electronic scales, counting scales, electronic balances and industrial weighing systems.
Material: Aluminum alloy
Features: High precision Strong anti-eccentricity

Add to Wishlist
Share it:

T721E Electronic Balance Load Cell

Dimension

T721E-size

Parameters

Specifications

Technique

Capacity

150,300,500 kg

Accuracy

C3

Zero Balance

2.0 ± 10% mV / V

Non-linearity

± 2 ％ F.S.

Hysteresis Error

0.0166% F.S.

Repetition

0.0166% F.S.

Creep (30 min)

0.02% F.S.

Temp. Effect on sensitivity (TKc)

0.017% F.S. / 10 ℃

Temp. Effect on zero balance (TKo)

0.02 ％ F.S. / 10 ℃

Input Resistance

420 ± 20Ω

Output Resistance

350 ± 10Ω

Insulating Resistance

≥5000MΩ / 100VDC

Excitation Voltage

5 ~ 15 V

Max. Excitation Voltage

20 V

Compensation Range

-10 ~ 40 ℃

Service Temperature Range

-10 ~ 50 ℃

Limit load (E L)

150% F.S.

Breaking load (E d)

300% F.S.

Cable size

φ6 × 3000 mm

Weight (G), approx.

0.6 kg

Material (Measuring element)

Aluminum Alloy

IP Class

IP67

Features and Applications

Aluminum alloy material

High precision and strong anti-eccentricity

Easy to install, IP67

Suitable for electronic scales, counting scales, electronic balances and various industrial weighing systems



Load Direction

t715-2

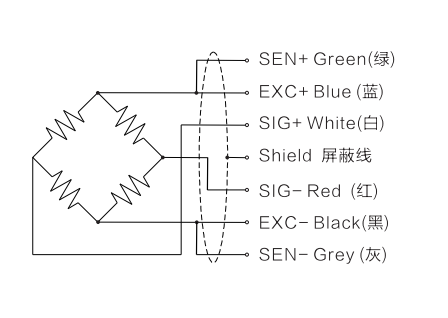

Wiring Code

wiring code
