Right / T003 / Weighing Module

Stainless steel welded sealed sensor, protection grade IP68 can be used in harsh environments
Easy maintenance, saving downtime and maintenance time
Anti-partial load, strong overload capacity, good long-term stability.
Maximum range: 220kg ~ 4.4t

Add to Wishlist

T003 Weighing Module

Dimensions

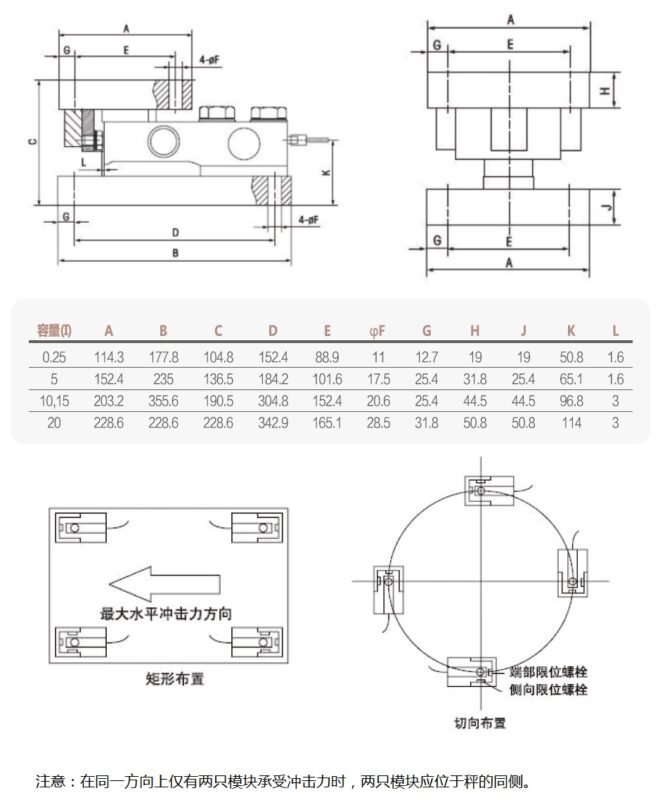

T003 Installation dimensions

Parameters

Specifications	Technique
Sensitivity	2.0 ± 10% mV / V 3.0 ± 10% mV / V
Zero Balance	± 2% mV / V
Non-linearity	0.03 F.S.
Hysteresis Error	0.03% F.S.
Repetition	0.03% F.S.
Creep (30 min)	0.03% F.S.
Temp. Effect on sensitivity (TKc)	0.025 ％ F.S. / 10 ℃
Temp. Effect on zero balance (TKo)	0.025 ％ F.S. / 10 ℃
Input Resistance	385 ± 5 Ω
Output Resistance	350 ± 5 Ω
Insulating Resistance	≥5000MΩ / 100VDC
Excitation Voltage	10 V
Max. Excitation Voltage	15 V
Compensation Range	-10 ~ 60 ℃
Service Temperature Range	-20 ~ 80 ℃
Limit load (E L)	150% F.S.
Breaking load (E d)	200% F.S.
Cable size	φ5 × 6000 mm
Material (Measuring element)	Alloy steel or stainless steel
IP Class	IP65 (＜ 500kg) IP68 (≥500kg)

Features and Applications

Imported stainless steel welded sealed sensor, protection grade IP68 can be used in various harsh environments-the sensor meets O | ML R60 C3 and NTEP 10000 ||| L requirements

The structure is unique and can be easily installed on various tanks. The three roof structures (fixed, semi-floating and floating) can eliminate the weighing error caused by thermal expansion and contraction of the tank

Support bolts to prevent the equipment from overturning

Simple and fast installation

Easy maintenance, saving downtime and maintenance time

Suitable for weighing control of the batching process of tanks in harsh environments

Anti-eccentric load, strong overload capacity, good long-term stability

Maximum range: 220kg ~ 4.4t

Used for all kinds of ground scales, ground scales, batching scales and industrial weighing systems

Wiring Code

Wiring regulations
