R214 Miniature Compression Load Cell
● Features and Applications
Ultra-thin design with low height, small deformation, small size and high accuracy;
Stainless steel material, high temperature can be customized;
Protection grade: IP67 can be customized;
High dynamic response frequency;
Automobile press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics;
High precision, good long-term stability, good reliability, fatigue resistance, high frequency of use, good creep performance, small temperature drift, high dynamic response frequency;

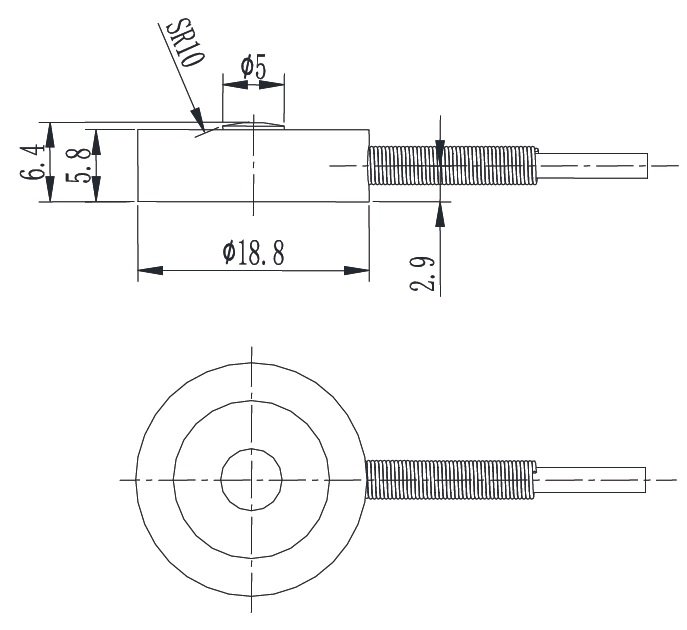

● Dimension
● Parameter
| Capacity |
50,100,200,500,1000 N |
| Sensitivity |
1.5 ± 10 ％ mV / V |
| Zero Balance |
± 0.05 mV / V |
| Non-linearity |
0.2% F.S. |
| Hysteresis Error |
0.2% F.S. |
| Repetition |
0.1% F.S. |
| Creep (30 min) |
0.1% F.S. |
| Temp. Effect on sensitivity (TKc) |
0.05% F.S./10℃ |
| Temp. Effect on zero balance (TKo) |
0.05% F.S./10℃ |
| Input Resistance |
700± 10 Ω |
| Output Resistance |
700 ± 10 Ω |
| Insulating Resistance |
≥5000 MΩ / 100VDC |
| Excitation Voltage |
5 ~ 15 V |
| Max. Excitation Voltage |
20 V |
| Compensation Range |
-10 ~ 60 ℃ |
| Service Temperature Range |
-20 ~ 80 ℃ |
| Limit load (EL) |
150% F.S. |
| Breaking load (Ed) |
200% F.S. |
| Cable Size |
φ3 × 4000 mm |
| Material (Measuring element) |
Stainless steel |
| IP Class |
IP67 (customizable) |
● Load Direction ● Wiring Code
