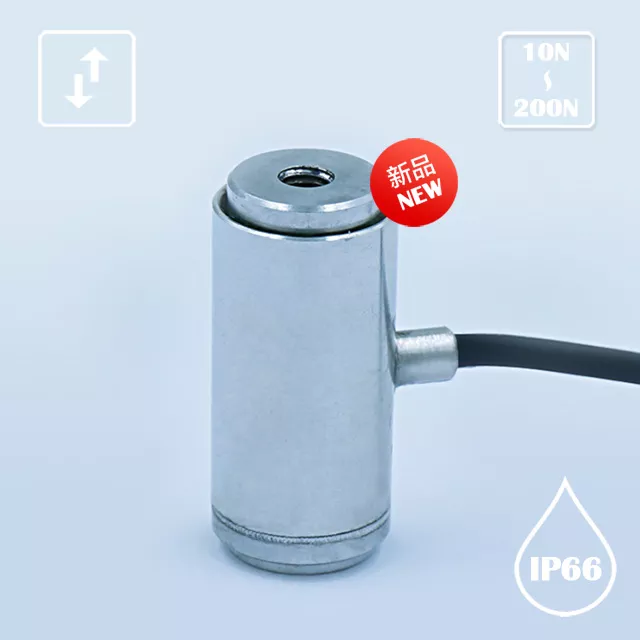

R178C2 Cylindrical Tension And Compression Load Cell

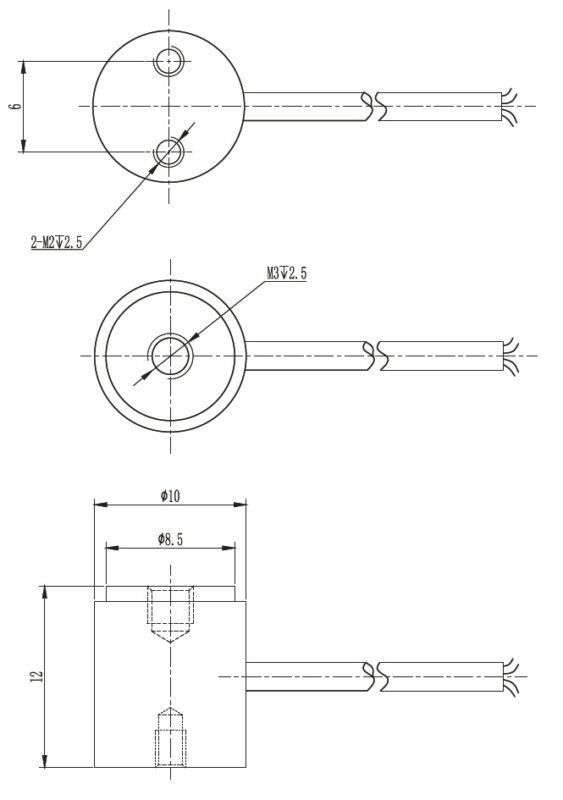

Dimension
Parameters
| Specifications |
Technical index / Technique
|
| Capacity |
10,20,30,50,100,200 N
|
| Sensitivity |
2.0 ± 10 ％ mV / V
|
| Zero Balance |
± 2% mV / V
|
| Non-linearity |
0.1% F.S.
|
| Hysteresis Error |
0.1% F.S.
|
| Repetition |
0.1% F.S.
|
| Creep (30 min) |
0.05% F.S.
|
| Temp. Effect on sensitivity (TKc) |
0.05% F.S. / 10 ℃
|
| Temp. Effect on zero balance (TKo) |
0.05% F.S. / 10 ℃
|
| Input Resistance |
350 ± 30 Ω
|
| Output Resistance |
350 ± 10 Ω
|
| Insulating Resistance |
≥5000 MΩ / 100VDC
|
| Excitation Voltage |
5 V
|
| Max. Excitation Voltage |
15 V
|
| Compensation Range |
-10 ~ 40 ℃
|
| Service Temperature Range |
-20 ~ 60 ℃
|
| Limit load (E L) |
150% F.S.
|
| Breaking load (E d) |
200% F.S.
|
| Cable Size |
φ2 × 4000 mm
|
| Weight (G), approx. |
0.3 kg
|
| Material (Measuring element) |
Stainless steel
|
| IP Class |
IP66
|
Features and Applications
Low height, small deformation, easy installation, flat loading;
stainless steel material;
Welding force test and tension test;
High dynamic response frequency;
Automotive press assembly, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, various industrial weighing systems,
Mold assembly and other industrial test, measurement and control systems
