Right / R127 / Bending Beam Load Cell

Widely used in electronic scales, counting scales, electronic balances and industrial weighing systems.

Material: Aluminum alloy
definition: High precision Strong anti-eccentricity

Add to Wishlist
Share it:

R127 Bending Beam Load Cell

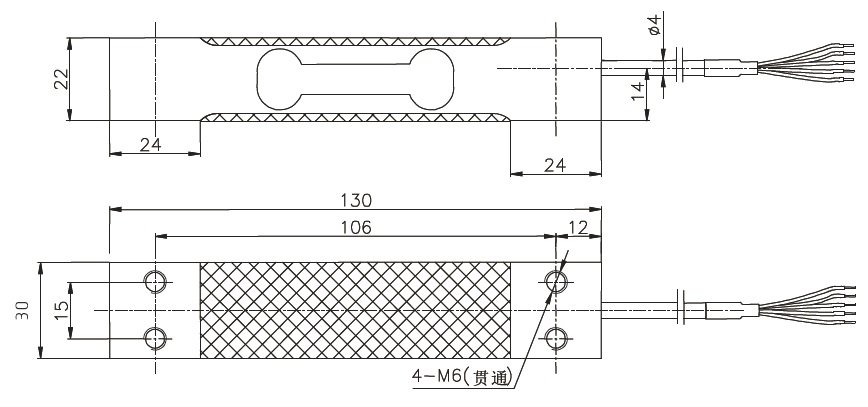

Installation dimensions

R127 installation drawings

Parameters Table

Specifications

Technical index / Technique

Capacity

3,6,10,20,30 kg

Accuracy

C3

Zero Balance

2.0 ± 10% mV / V

Non-linearity

± 2% F.S.

Hysteresis Error

0.015% F.S.

Repetition

0.015% F.S.

Creep (30 min)

0.017% F.S.

Temp. Effect on sensitivity (TKc)

0.02 ％ F.S. / 10 ℃

Temp. Effect on zero balance (TKo)

0.02 ％ F.S. / 10 ℃

Input Resistance

405 ± 10 Ω

Output Resistance

350 ± 5 Ω

Insulating Resistance

≥5000MΩ / 100VDC

Excitation Voltage

5 ~ 15 V

Max. Excitation Voltage

20 V

Compensation Range

-10 ~ 40 ℃

Service Temperature Range

-20 ~ 60 ℃

Limit load (E L)

150% F.S.

Breaking load (E d)

300% F.S.

Cable size

φ4 × 3000 mm

Weight (G), approx.

0.25 kg

Material (Measuring element)

Aluminum alloy

IP Class

IP65

Features and applications

Aluminum alloy material

High precision and strong anti-eccentricity

Easy to install, IP 65

Main electronic scales, counting scales, electronic balances and various industrial weighing systems, etc.



Load Direction

T707-2

Wiring Code

Wiring regulations
