NS-WL2 Series Pull Pressure Sensor
Parameter

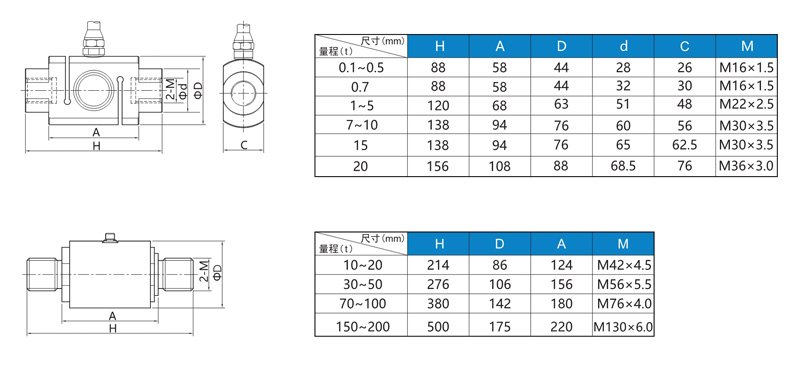

Dimensions
Wiring Definition
Selection table
Tension Pick-up Load Cell
Capacity: 10~3000kg
Category: Tension Sensor
High precision and stable performance. Suitable for long-term measurement and monitoring of wire rope tension.
Tension measurement sensor.
Material: stainless steel Alloy steel
definition: Super anti-overload capability Various range sizes can be customized
Tension Pick-up Load Cell
Capacity: 30kg
Category: Tension Sensor
Tension Pick-up Load Cell
Capacity: 5~100kg
Category: Tension Sensor
Product description:
S530S a round-shaped tension & compression load cell, completely hermetically sealed by laser to ensue it can work in harsh environments. Available in a wide range of capacities from 300kg thru to 5t
Main Features:
• Material: stainless steel
• Rated Capacities: 300kg~5t
• OIML R60, NTEP HB44, CE and RoHS certified
• IP Rating: IP66, IP68
• Suitable for process weighing of hopper scales, silo scales, tank scales.
• High precision by OIML R60 C3, high reliability.
Category: Tension
Tension Pick-up Load Cell
Capacity: 38N
Category: Tension Sensor
Simple structure, high reliability and good interchangeability. Suitable for various proportioning scales, hopper scales, hook scales, etc.
With the function of anti-overload protection. High precision, bidirectional bearing, easy to install. It is suitable for measuring and controlling the force value of batching scale, hook scale, electromechanical scale, packaging scale, material mechanics testing machine and other equipment.
Tension Pick-up Load Cell
Capacity: 38N
Category: Tension Sensor
Tension Pick-up Load Cell
Capacity: 20,50,100,150kg
Category: Tension Sensor
This type tension load cell is made by stainless steel, high precision, small size. Suitable for force detection equipment such as medical instruments, electronic scales, hopper scales, etc.
