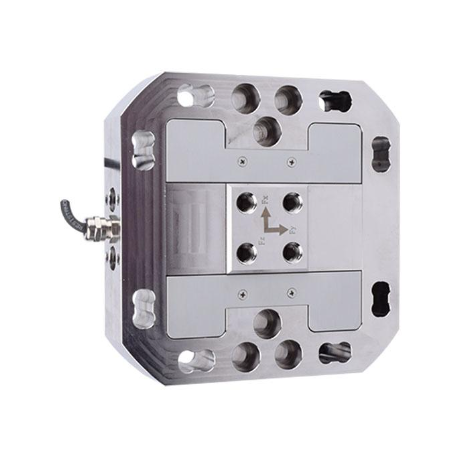

Strain type three-axis load cell 1-5t 704D
Features
Strain type three-axis load cell 1-5t 704D consists of an elastic element, a resistance strain gauge and a Wheatstone bridge circuit. The resistance strain gauge converts the strain variable proportional to the weight of the object into the resistance change, and then converts the resistance change into the voltage or current output through the Wheatstone bridge circuit. The voltage or current output value can be measured by the display instrument to complete the measurement task.
- High precision
- Easy to install
- Long-term stability
Applications
- Grinding force monitoring
- Automotive experiments
- Force control in robotics

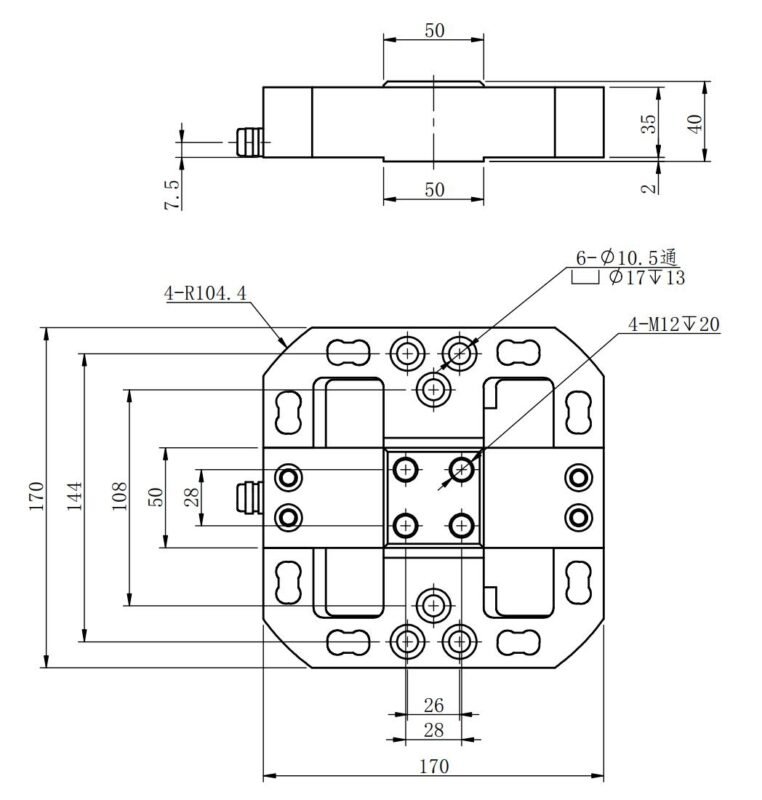

Mounting Dimension
Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | X/Y/Z:1-5t |
| Rated output | ≈1.0±10%mV/V |
| Zero balance | ±0.01mV/V |
| Creep（30min） | 0.3%F.S. |
| Non-linearity | 0.3%F.S. |
| Hysteresis | 0.3%F.S. |
| Repeatability | 0.2%F.S. |
| Interference error | 1%F.S. |
| Temp.effect on output | 0.1%F.S./10℃ |
| Temp.effect on zero | 0.1%F.S./10℃ |
| Input impedance | 350/780±10Ω |
| Output impedance | 300/700±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation | 15V |
| Compensated temp range | –10~40℃ |
| Operation temp range | –20~75℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | 3m |
