Miniature S-beam force sensor NF301
Features
Miniature S-beam force sensor NF301 is available in ten ranges 0-5N,0-10N,0-20N,0-50N,0-100N,0-200N to choose from. Because of the wide range and small size of the S shaped force transducer, it can be used in many application, such as finite space and tight space locations.
- Mini sensor
- High precision
- Tension and compression bidirectional
Applications
- Automatic equipments
- Testing fields,such as insertion force test instruments
- Small installation space force detection

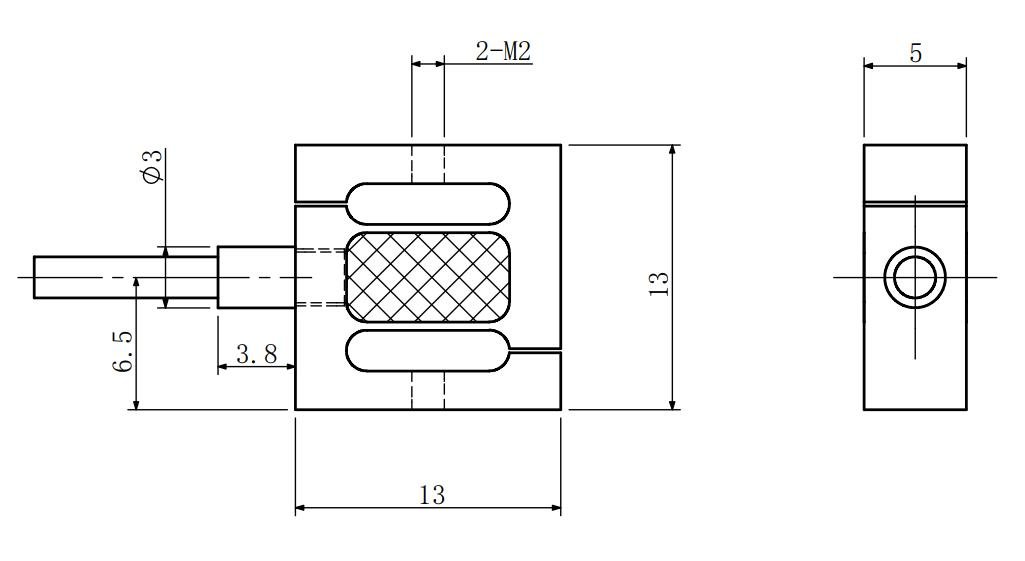

Mounting Dimension

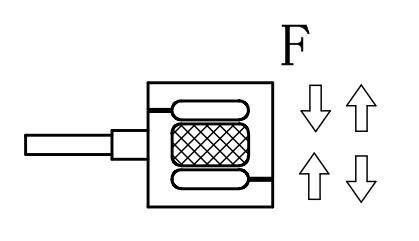

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 5,10,20,50,100,200N |
| Rated output | 2.0±10%mV/V |
| Zero balance | ±0.02 mV/V |
| Non-linearity | 0.05%F.S. |
| Hysteresis | 0.05%F.S. |
| Repeatability | 0.05%F.S. |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Input impedance | 350±30Ω |
| Output impedance | 350±5Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5V |
| Maximum excitation | 15V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –20~80℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | φ2×3000mm |
