Miniature load cell with load button NF101
Features

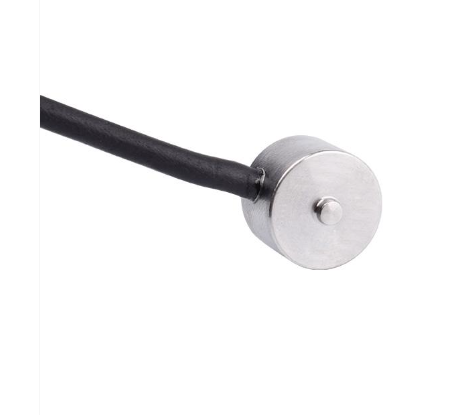

Miniature load cell with load button NF101 is a very popular choice for press compression applications. The micro load cell has a Small diameter and a small size. So,the mini transducer enables to be easily installed into machinery with limited mounting space.
- Miniature size
- Stainless steel
- Low height, small deformation
Applications
- 3C digital detection
- Machinery with limited mounting space
- Booster device

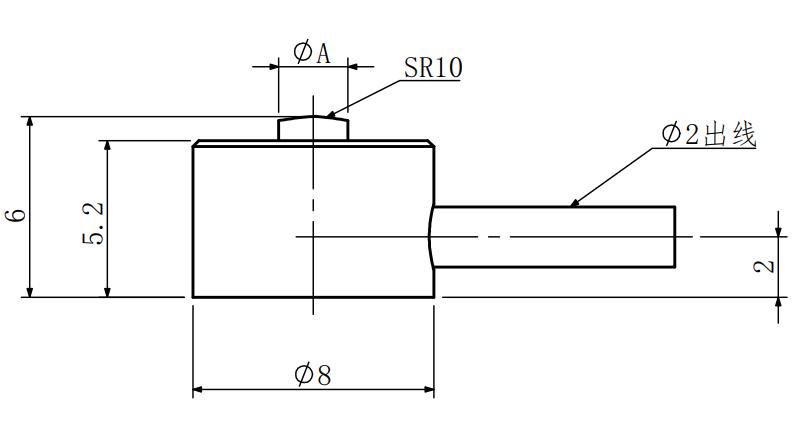

Mounting Dimension

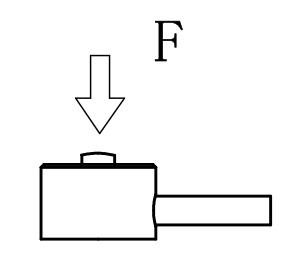

Load Direction
Wiring Code
Specifications
| Specifications | Technique |
| Capacity | 50,100,200,500N |
| Rated output | 1.0±20%mV/V |
| Zero balance | ±0.05mV/V |
| Non-linearity | 0.5%F.S. |
| Hysteresis | 0.5%F.S. |
| Repeatability | 0.5%F.S. |
| Input impedance | 600~800Ω |
| Output impedance | 600~800Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~12V |
| Maximum excitation Voltage | 15V |
| Compensated temp range | –10~60℃ |
| Operation temp range | –20~80℃ |
| Temp.effect on output | 0.05%F.S./10℃ |
| Temp.effect on zero | 0.05%F.S./10℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 300%F.S. |
| Cable size | φ2×3000mm |
