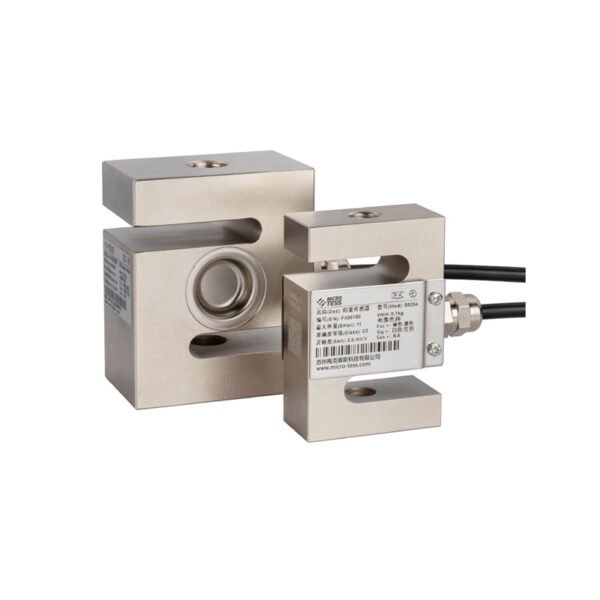

S525A-50kg, S525A-100kg, S525A-200kg, S525A-300kg, S525A-500kg, S525A-1000kg, S525A-2t, S525A-3t

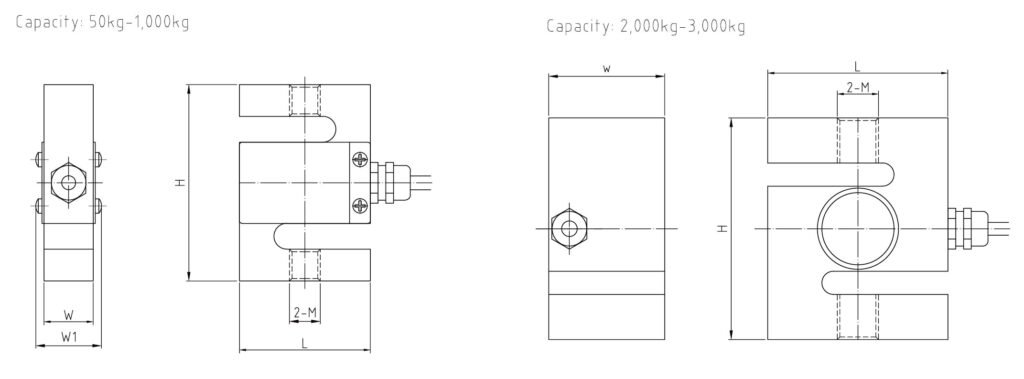

| Capacity | L | H | W | W1 | M |
| 50~200 | 50.8 | 76.2 | 18.5 | 24.5 | M10*1.0 |
| 300 | 50.8 | 76.2 | 24.4 | 30.4 | M10*1.0 |
| 500 | 50.8 | 76.2 | 24.4 | 30.4 | M12*1.0 |
| 1,000 | 50.8 | 76.2 | 36.0 | 42.0 | M12*1.0 |
| 2,000 | 70.0 | 86.0 | 45.0 | – | M16*1.5 |
| 3,000 | 80.0 | 100 | 50.0 | – | M18*1.5 |
용량：0.5, 1, 2, 3, 5t
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
용량：5, 10, 20, 50, 100kN
재질 : high quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68
Features
용량：20, 30, 50, 100, 300, 500kg
재질 : stainless steel
타입 : Single-Ended Beam
보호등급 : IP68, IP69K
Features
용량：50, 100, 300kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP67
Features
용량：100, 200, 300, 500, 750kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP68 / IP69K
<strong>Features </strong>
용량：60, 100, 200kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP68/IP69K
Features
용량：10, 30, 50kg
재질 : stainless steel
타입 : Single Point
보호등급 : IP67
용량：50, 100, 200, 300, 500, 1000kg, 2, 3, 5t
재질 : Alloy steel (Metric thread)
타입 : S-Beam
보호등급 : IP66/lP68
Features
용량：100, 200, 300, 500, 750, 1000kg
재질 : alloy steel
타입 : S type
보호등급 : IP67
Features
용량：0.5, 1, 2, 3, 5t
재질 : Alloy steel，stainless steel optional.
타입 : Single-Ended Beam
보호등급 : IP67/IP68
