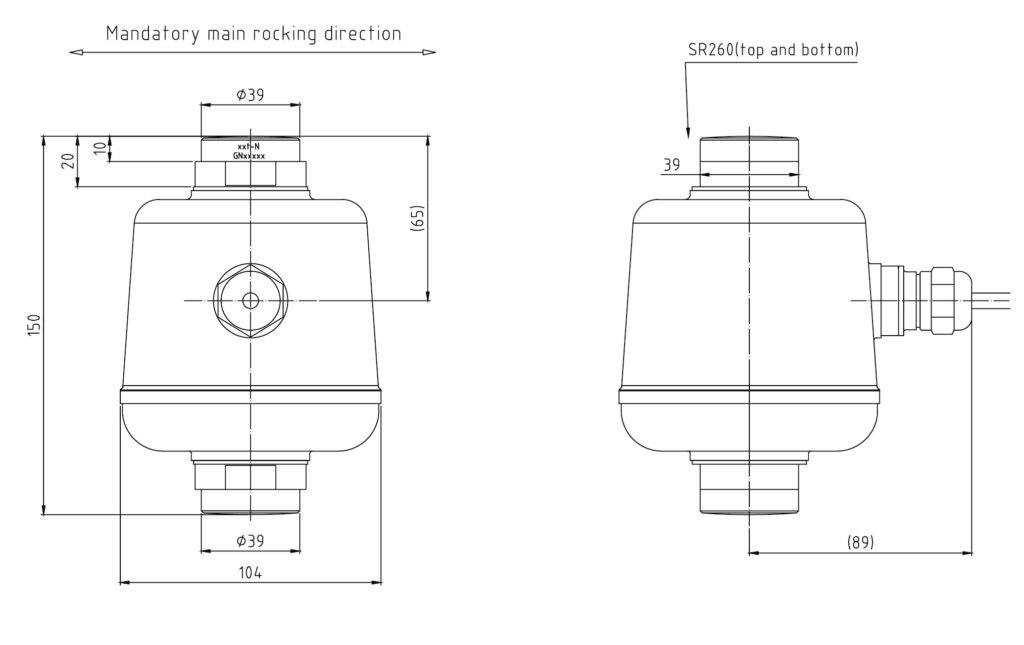

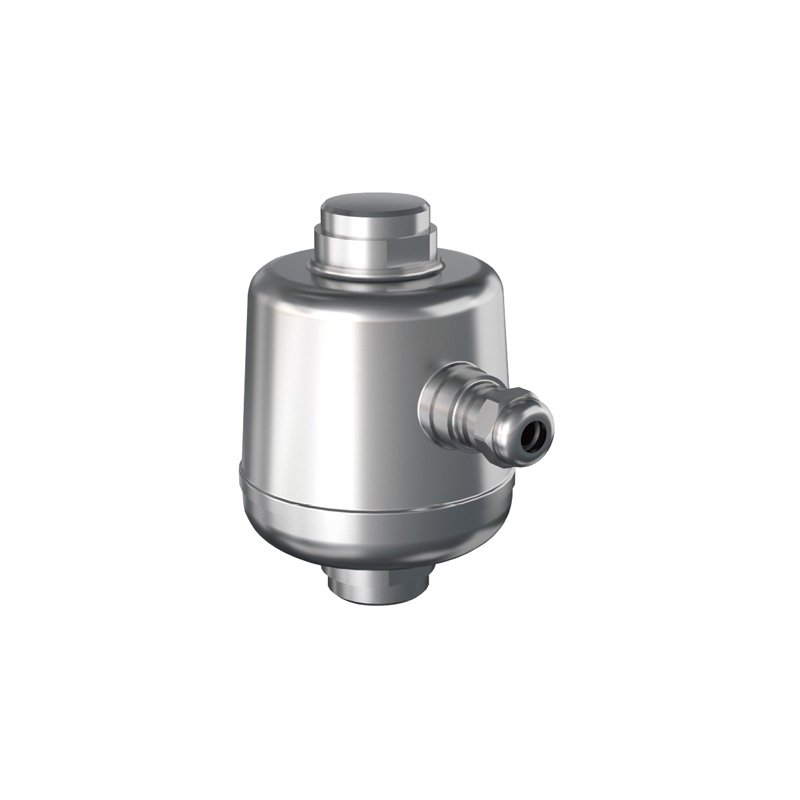

MICRO TESS / P520S / Canister Compression 로드셀

Capacity: 100–750 kg
Material: Aluminum
Type: Single Point
Protection Rating: IP66
Suitable for platform scales with single or dual load cell structures.

용량：10, 25, 40, 50, 75, 100, 200klb

재질 : Alloy steel

타입 : Double-Ended Shear Beam

보호등급 : IP68

Features

용량：550kg, 1.1, 1.76, 2.2, 4.4t
재질 : high-quality stainless steel
타입 : Single-Ended Beam
보호등급 : IP68

Capacity: 100–1,000 kg
Material: Alloy steel
Type: S-Type
Protection Rating: IP67
Suitable for crane scales, hopper scales, transmitters, and other electronic weighing equipment.

용량：50, 100, 200, 300, 500, 1000kg, 2, 3, 5t

재질 : Alloy steel (Metric thread)

타입 : S-Beam

보호등급 : IP66/lP68

Features

용량：50, 100, 250kg, 0.5, 1, 2, 3, 5, 7.5, 10t
재질 : Alloy steel，stainless steel optional
타입 : Single-Ended Beam
보호등급 : IP67/IP68

Capacity: 11–100 kg
Material: Stainless steel
Type: Single Point
Protection Rating: IP68 / IP69K
Suitable for platform scales, bench scales, and other electronic weighing equipment.

Features

용량：20, 30, 50, 100, 300, 500kg
재질 : stainless steel
타입 : Single-Ended Beam
보호등급 : IP68, IP69K

용량：0.5, 1, 2, 3, 5t

재질 : high quality stainless steel

타입 : Single-Ended Beam

보호등급 : IP68

용량：15t

재질 : Alloy steel

타입 : Double-Ended Shear Beam

보호등급 : IP68

용량：15t

재질 : Alcy steel

타입 : Double-Ended Shear Beam

보호등급 : IP68
