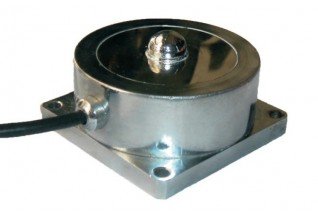

MLW22 Shear Web Compression Load Cell
Technical Specification
| Standard Measurement Range | 500kg, 1t, 2t, 4t, 5t, 10t, Any other non-standard range |
|---|---|
| Output Signal | 2mV/V |
| Accuracy (combined LRH) | 0.05% FS |
| Creep | ±0.02% FS / 30min |
| Overload Rating | 120% FS |
| Zero unbalance | ±2% FS |
| Protection Level | IP66, IP67 |
| Compensated Temp. Range | -10 to 50°C |
| Operating Temp. Range | -20 to +60°C |
| Temp. Coefficient of Zero | 0.05% FS /10°C |
| Temp. Coefficient of Span | 0.05% FS /10°C |
| Input Resistance | 730±5Ω |
| Output Resistance | 700±2Ω |
| Insulation resistance | > 5000MΩ @ 50VDC |
| Electric Connection | 5m cable |
Features
- Load Measurement Ranges of 0.5 to 10t
- Compact and Rugged Model
- Steel Alloy Material
- Very Competitive Price
Applications
- Hopper Scales
- Tank weighting systems
- Flat mounting weighing systems
- vehicle scale
