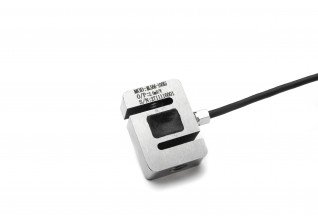

Measurex / MLS66 Miniature S-Type Force Sensor

MLS66 series with steel body is a rugged and accurate compact size force sensor suitable for tension-compression load measurement, where there is a space limitation. This S-Type load cell offers great flexibility and reliability for a wide range of applications with highly competitive pricing. MLS66 is available in standard ranges of 0-5,10,20,50 and 100kg with an output of mV/V. The standard Precision is 0.05% FS. The robust construction of MLS66 with its high performance makes it ideal for demanding long term applications.

Add to Wishlist
Share it:

MLS66 Miniature S-Type Force Sensor

mls66_drawing-1

Technical Specification

Standard Measurement Range 5kg, 10kg, 20kg, 50kg, 100kg
Output Signal 2mV/V
Accuracy (combined LRH) 0.05% FS
Creep ±0.05% FS / 30min
Overload Rating 150% FS
Zero unbalance ±2% FS
Protection Level IP65
Compensated Temp. Range -10 to 60°C
Operating Temp. Range -20 to +80°C
Temp. Coefficient of Zero 0.05% FS /10°C
Temp. Coefficient of Span 0.05% FS /10°C
Input Resistance 350±5Ω
Output Resistance 350±10Ω
Insulation resistance ≥5000MΩ @ 50VDC
Electric Connection 3m cable



Features

  • Miniature size (12 x 25 x 35mm)
  • Wide load measurement range of 0-5 to 0-100kg
  • Offers high accuracy of 0.05% and high dynamic frequency

Applications

  • Pull –push test instruments
  • Production machinery
  • Automation
  • Lifting hook scales
  • Robotic applications
