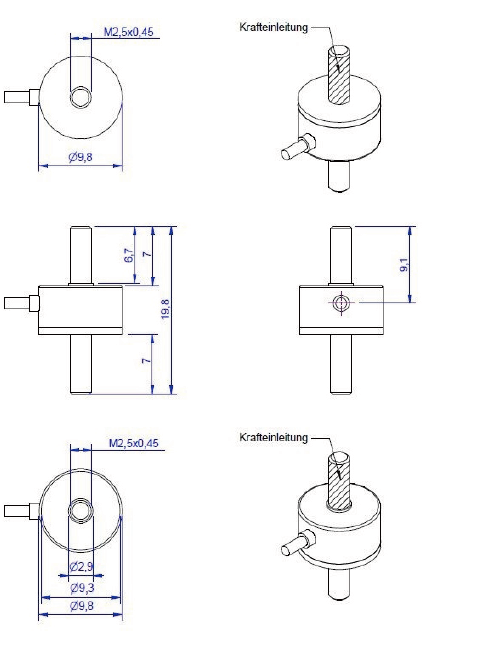

ME-Systeme / KM10z Column Force Sensor

1.A ring-shaped column sensor is a device used to measure and monitor the axial preload of bolted connections.
2.It can be used to improve the reliability and safety of bolted connections, preventing bolts from loosening or becoming too tight.
3.It can reflect the contact interface stiffness and clamping force of bolted connections, and detect or quantify the tightening degree of bolts.
4. The inner hole size can be customized non-standard, and the elastomer is made of high-quality stainless steel material.

This column sensor has the advantages of low height, large contact area, high comprehensive accuracy and convenient installation. Different measuring ranges and sizes can be customized.
It is mainly used in various electronic weighing equipment and tensile force detection equipment with large stress area, such as press-fitting equipment, mobile phone assembly, small pressure platform,
testing machine, press-fitting machine, oil press, cold and hot press, electronic hook scale hopper scale, etc.

Column load cell with flange type body combined is an excellent performance weight measurement device for 5 ton/10 ton to 30 ton load measurement optional. It is made of high-strength alloy steel, which is robust and ensures stable operation in harsh environments.

1.Made of stainless steel;

2. Suitable for proportioning control system, detecting equipment and other weighing devices.

KWT1S55 is a small range and high-precision tensile and compressive force sensor. Its main body is designed with an aluminum alloy structure, and its top is equipped with a compressive loading head, which is convenient for customers to apply pressure to the heart.

15-100t IP68 Material Weighing Control For Large Tonnage Tank Applied Weighing Module FA812 is a model of our brand FIBOS FA8-Series, Weighing Module FA812 can be used to measure load ranges from 15t,20t,30t,50t to 100t capacity, it is easy to install and maintan, it supports bolt to avoid overturn, its spherical fittings keep the vertical weighing state.

1. Super strong resistance for anti shock pressure;

2. Operating perfectly under 10m water;

3. Could work under harsh environment i.e. in dusty, sandy or icing environment;

4. Made of alloy steel, with reset function which enable the sensor to bear side impact;

5. Super stability on accuracy during long term operation;

6. User friendly, accuracy will not be affected in case that the product is installed with 5mm center deviation.

• Capacity: 0-100T
• Sensitivity: 1.5±0.05mV/V
• Non-linearity 0.1% F.S.
• Repeatability 0.05% F.S.
• Material Aluminum alloy with nickel plated
• Bi-directional tension and compression
• Can be customized

It should be widely used in auto press assembly, automated assembly, and 3C product testing;New energy product assembly, medical testing, robot, mold assembly;And other industrial test, measurement and system, easy to install.It can also be used in push and pull gauges, various industrial weighing systems, etc., with high dynamic response frequency.

Material: stainless steel

Size: Low height, Plane loading

Buy a tension and compression column load cell online with optional capacities ranging from 1 kg, 5 kg, 10 kg, 20 kg, 50 kg, 100 kg up to 2 tons. This miniature column-type load cell accurately measures both tensile and compressive forces, ideal for use in testing machines, industrial automation, process control, and weighing systems.

This product is simple in structure design and low in cost. The design of its sealing diaphragm changes the complicated process of matching the shell in the past, overcomes the defect that the shell of the traditional sensor is easy to be damaged due to deformation, and greatly improves the sealing performance of the sensor. Compared with the traditional column sensor, the sensor with this structure has higher accuracy in linearity, lateral resistance, torsion resistance and azimuth error.
This small size is suitable for the production and testing of 3C digital products. Traditional column sensors are widely used in various electronic weighing equipment such as track scales, hopper scales and platform scales.
