MLC928WD platform scale weighing sensor

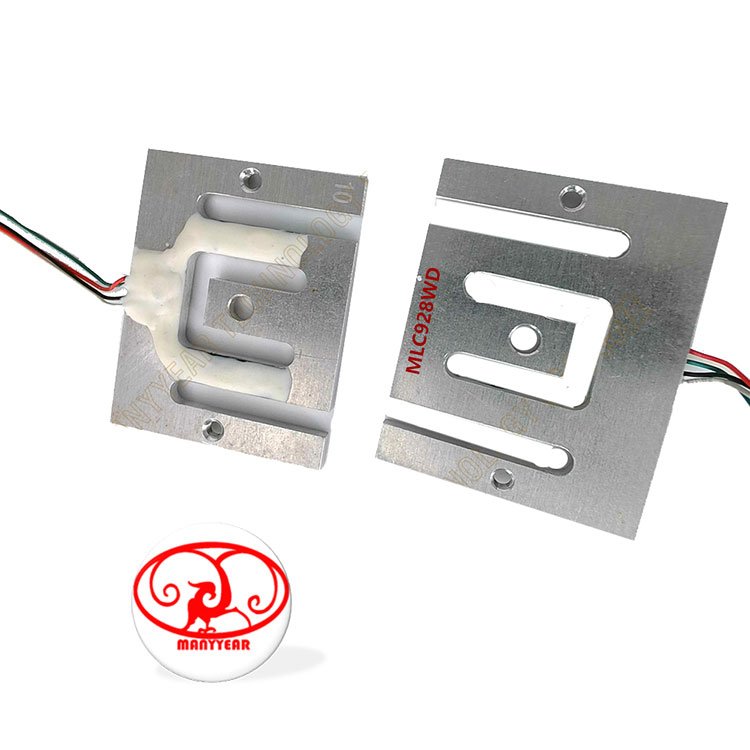

Product Picture Reference
Technology Specification
Below spec is only for customer design reference,we can provide ODM product.
MLC928WD platform scale weighing sensor
| Model: MLC928WD Category: Micro load cell Range: 5, 7.5, 10, 15, 20, 30, 50, 75, 100kg Dimension: 37×47×T (T=3~10mm) Material: alloy steel Characteristic: kitchen scale, pet scale, rice cooker, platform scale |
|||
| Item | Value | Item | Value |
|---|---|---|---|
| Comprehensive error | 0.05%FS | Output resistance | 1000±20% |
| Rated output | 1.0±0.2mV/V | Input resistance | 1000±20% |
| Safety overload | 150%R.C | Insulation resistance | ≥2000MΩ |
| Non-linearity | ±0.03%R.O. | Excitation voltage | ≤6VDC |
| Hysteresis | ±0.03%R.O. | Use temperature | 0~+40℃ |
| Repeatability | ±0.03%R.O. | Temp effect on zero | ±2%R.O./10℃ |
| Creep | ±0.03%R.O./2Min | Temp effect on span | ±0.1%R.O./10℃ |
| Zero balance | ±0.1mV/V | Protection grade | IP66 |
Product Dimension
Force Structure & Assembly Reference
