MLC928NB kitchen scale weighing sensor

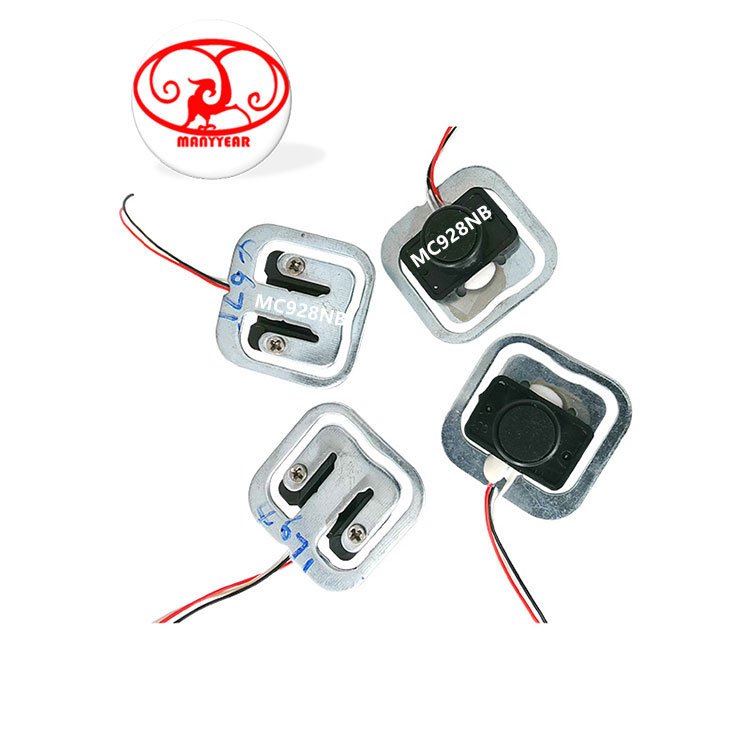

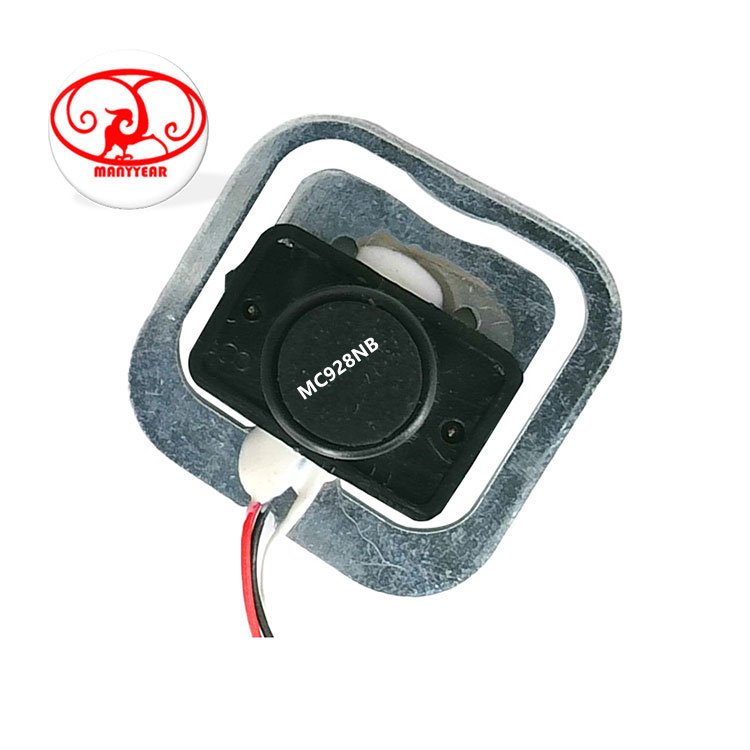

Product Picture Reference
Technology Specification
Below spec is only for customer design reference,we can provide ODM product.
MLC928NB kitchen scale weighing sensor
| Model: MLC928NB Category: Micro load cell Load range: 3kg, 5kg, 7.5kg, 10kg Dimension: 26×26×1.0mm / 1.5mm Material: alloy steel Characteristic: kitchen scale weighing sensor, pet scale weighing sensor, rice cooker weighing sensor |
|||
| Item | Value | Item | Value |
|---|---|---|---|
| Comprehensive error | 0.1%FS | Output resistance | 500±10Ω |
| Rated output | 0.75±0.15mV/V (3kg) 1.0±0.15mV/V (5–7.5kg) |
Insulation resistance | ≥2000MΩ (100VDC) |
| Non-linearity | 0.05%FS | Excitation voltage | 5–10VDC |
| Hysteresis | 0.1%FS | Compensated temp | -10 ~ +40°C |
| Repeatability | 0.05%FS | Use temperature | -20 ~ +55°C |
| Creep | 0.1%FS/10min | Temp effect on zero | 0.05%FS/10°C |
| Zero balance | ±0.5mV | Temp effect on span | 0.05%FS/10°C |
| Input resistance | 500±10Ω | Protection grade | IP66 |
Product Dimension
Force Structure & Assembly Reference
