MANYYEAR / MLC812- Z6R water proof Packaging Scale Sanitary Bellows Load Cell

The MLC812-Z6R water proof load cell is designed for batching and packaging scales, with rated loads from 50kg to 500kg. Made of alloy steel or stainless steel with a sanitary bellows structure, it fits food and pharmaceutical applications. Measuring Ø27×123mm, it has 120% safe overload and 200% ultimate overload, ensuring stable accuracy and strong anti-eccentric load performance. Ideal for feeding scales, belt scales and automated weighing systems.

Add to Wishlist
Share it:

MLC812- Z6R water proof Packaging Scale Sanitary Bellows Load Cell

Model: MLC812-Z6R
Category: Shear Beam Load Cells
Rated load: 50, 75, 100, 200, 250, 300, 500kg
Product size: Ø27 × 123mm
Safe overload: 120%; Ultimate overload: 200%
Material: alloy steel, stainless steel
Scope of application: feeding scale, belt scale, packaging scale, batching scale, food processing, pharmaceutical production

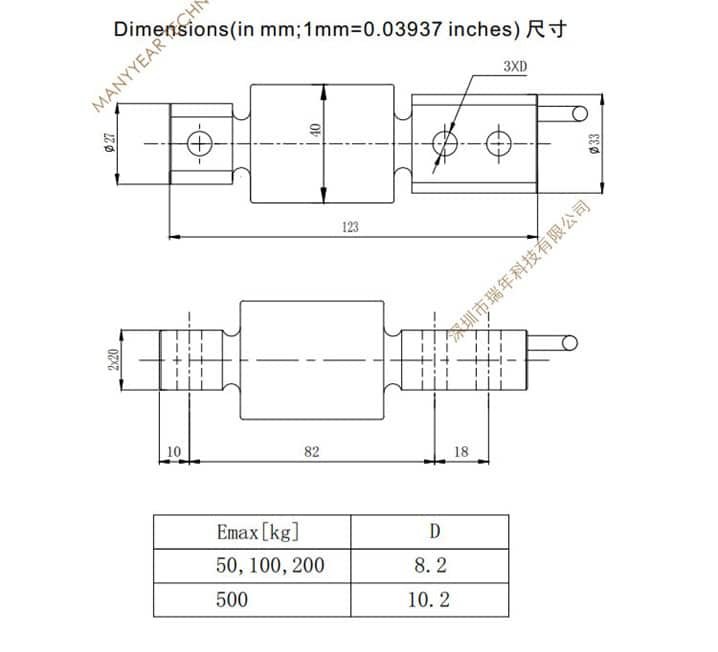

Product Dimension

MLC812-Z6R dimension

Other Sizes

Rated load 10~200kg 250~500kg
“d” 8.2mm 10.3mm

Technical Parameters

Comprehensive error: 0.02%FS / 0.01%FS Output resistance: 352±3Ω
Rated output: 2±0.002 mV/V Insulation resistance: ≥5000MΩ (100VDC)
Nonlinearity: 0.017%FS Excitation voltage: 5~12VDC
Lag: 0.02%FS Compensation temperature: -10~+40℃
Repeatability: 0.01%FS Operating temperature: -30~+70℃
Creep: 0.02%FS / 10min Temp effect on zero: 0.02%FS / 10℃
Zero balance: ±1%FS Temp effect on sensitivity: 0.02%FS / 10℃
Input resistance: 400±10Ω Protection level: IP68
