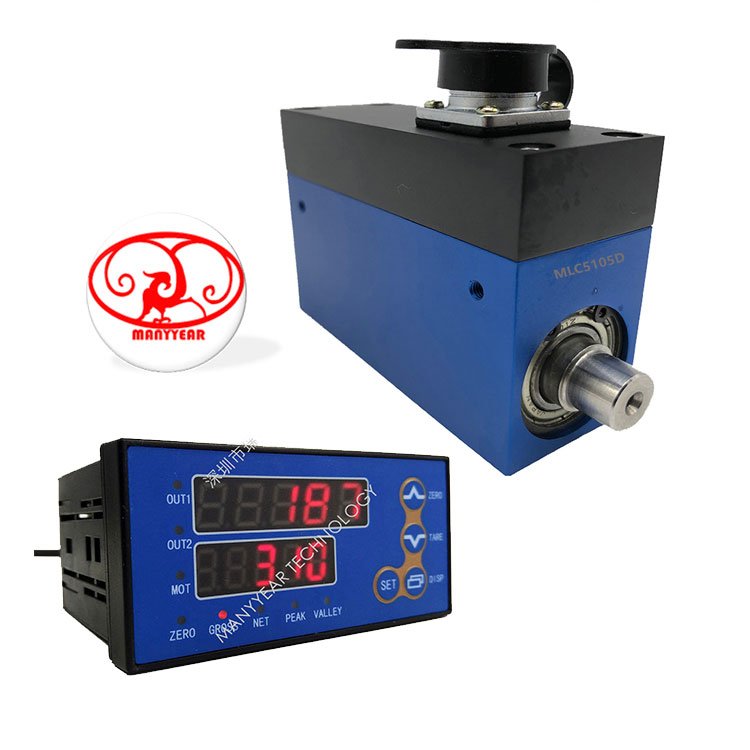

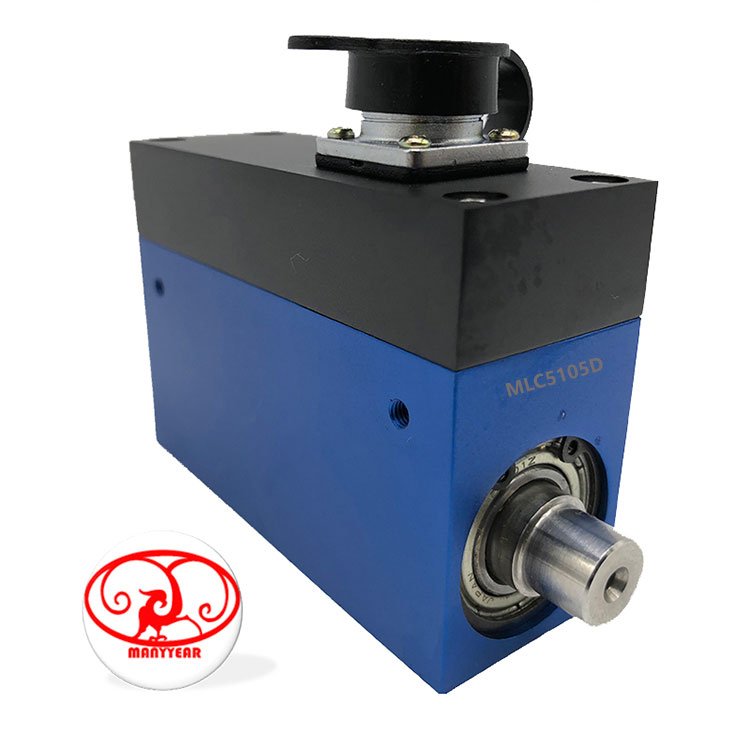

MANYYEAR / MLC5105D winding tension micro torque sensor

• Range: 0~500KN m
• Output: 0~±5/10V, 4~20mA optional
• Accuracy: ≤±0.1%F.S
• Maximum output: 12000 r/min

Product description:Features:
Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.

• It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
• High precision, stable and reliable performance
• Medium/Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
• Speed up to 16000 RPM.

Product description:
Can measure the static torque and also the rotation torque;
Detection of high precision, good stability, strong anti-interference;
Without repeated zero calibration and can be measured continuously positive and negative torque;
No wear parts such as collecting ring, can run at high speed for a long time;
Strain Elastomer strength, can withstand 150% loading;
Strong anti-interference, can be anywhere, any direction of installation;
Output signal:  Pulse, 4-20mA
