MLC213 Round Button Force Load Cell

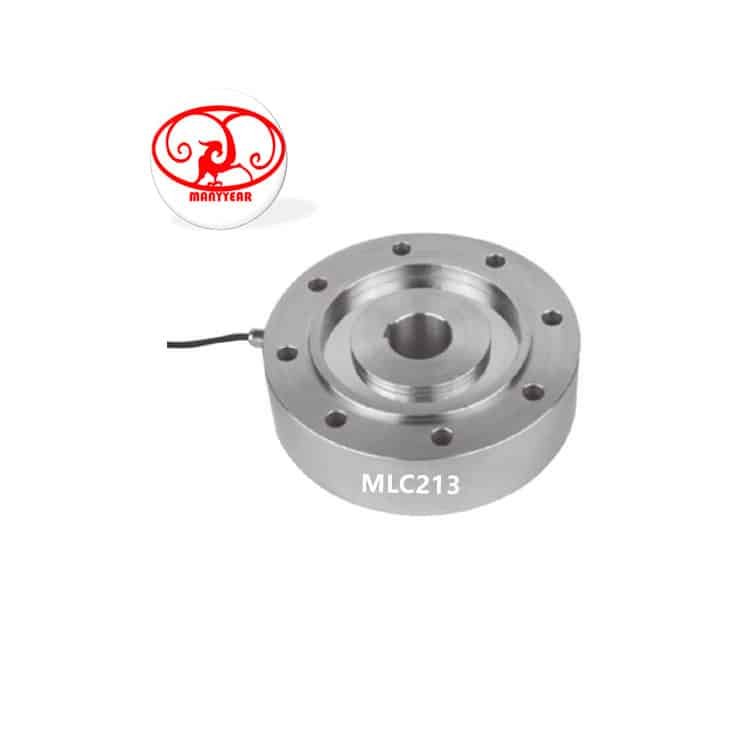

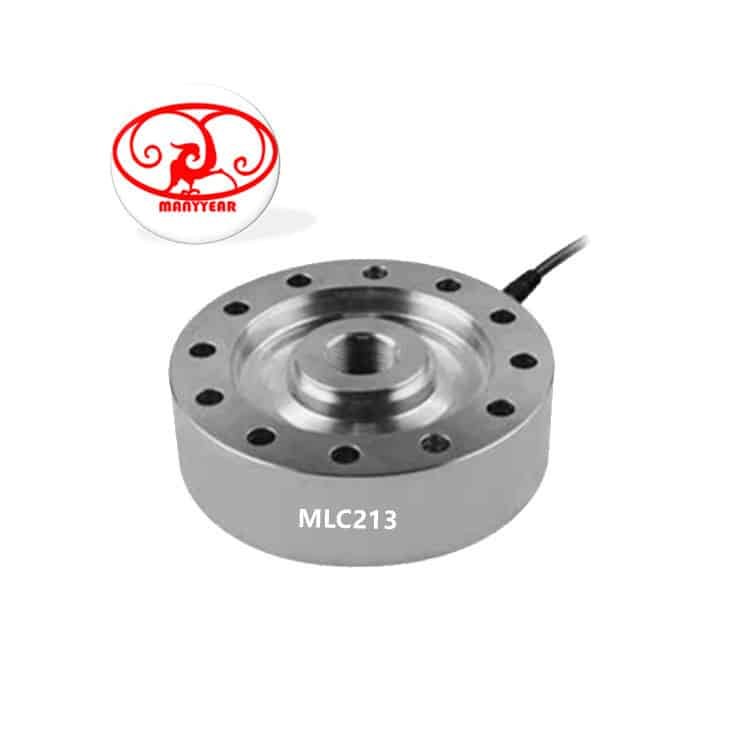

Product Picture Reference
Technology Specification
Below specifications are for reference only. We support ODM / customized products based on customer requirements.
|
Model: MLC213 Category: Button Load Cell Range: 1t, 2t, 3t, 5t, 10t, 20t, 30t, 60t Dimension: 226 × 45 mm / 226 × 66 mm Material: Alloy Steel / Stainless Steel Features: Hopper scale weight sensor, round force sensor, compression force sensor, button load cell |
| Specifications | |||
|---|---|---|---|
| Comprehensive Error | 0.05% FS | Output Resistance | 352 ±5 Ω |
| Rated Output | 2.0 ±0.005 mV/V | Insulation Resistance | ≥5000 MΩ (100 VDC) |
| Non-linearity | 0.05% FS | Excitation Voltage | 9–12 VDC |
| Hysteresis | 0.05% FS | Compensated Temperature | -10 ~ +40 ℃ |
| Repeatability | 0.03% FS | Operating Temperature | -20 ~ +55 ℃ |
| Creep | 0.03% FS / 10 min | Temperature Effect on Zero | 0.05% FS / 10 ℃ |
| Zero Balance | ±1% FS | Temperature Effect on Span | 0.05% FS / 10 ℃ |
| Input Resistance | 400 ±10 Ω | Protection Grade | IP66 / IP68 |

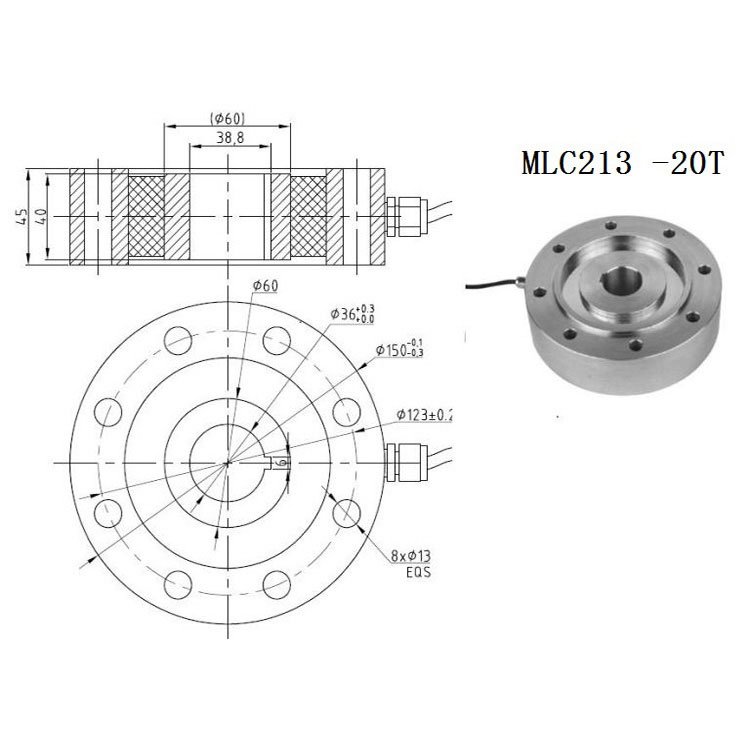

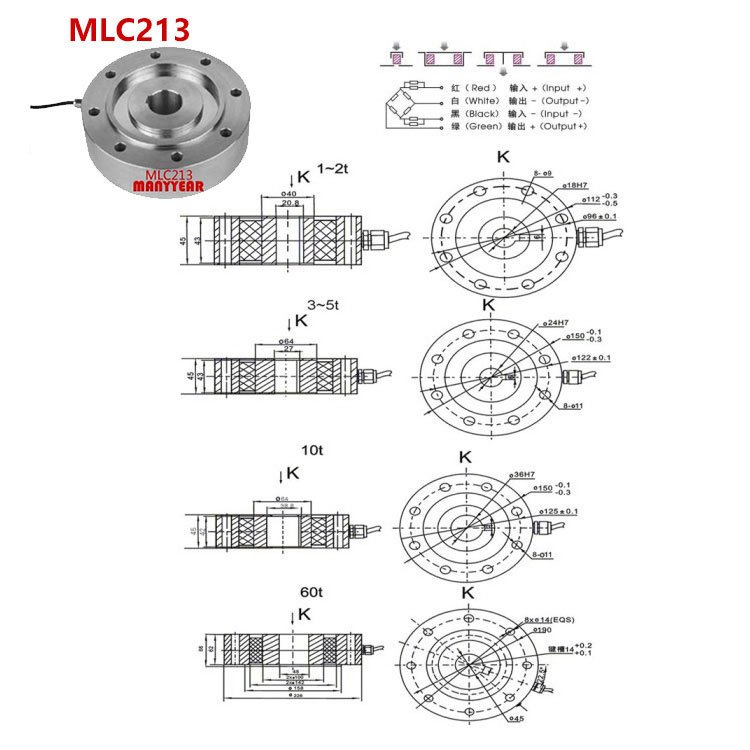

Product Dimension
Force Structure & Assembly Reference
