MLC204FB Miniature Compression & Tension Load Cell

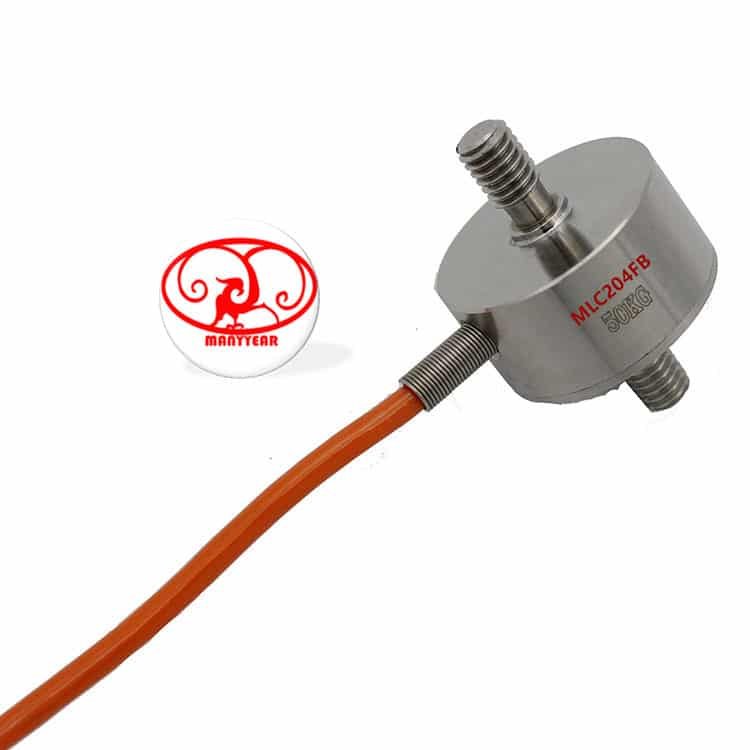

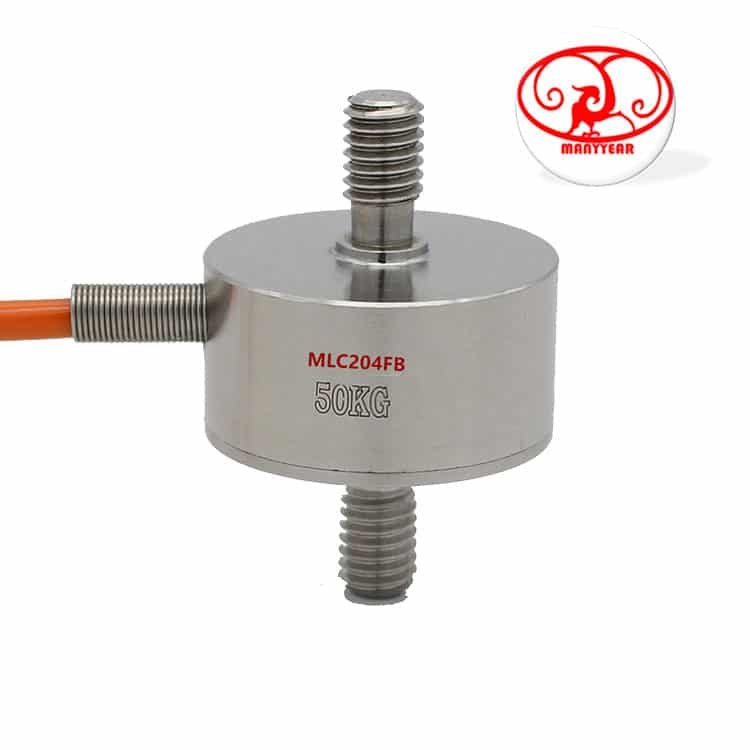

Product Picture Reference
Technology Specification
The following specifications are for reference only. We support ODM and customized products according to customer requirements.
|
Model: MLC204FB Category: Button Type Load Cell Measurement Type: Compression & Tension Capacity Range: 1, 2, 3, 5, 10, 20, 50, 100, 200 kg Dimensions: 29 × 38 mm / 33 × 46 mm Material: Alloy Steel or Stainless Steel Features: Miniature size, high accuracy, suitable for both compression and tension measurement Applications: Miniature force measurement, automation equipment, testing machines, industrial control systems |
| Specifications | |||
|---|---|---|---|
| Comprehensive Error | 0.2% FS | Output Resistance | 350 ±10 Ω / 700 ±5 Ω |
| Rated Output | 1.0 ±0.15 mV/V | Insulation Resistance | ≥5000 MΩ (100 VDC) |
| Non-linearity | 0.2% FS | Excitation Voltage | 9–12 VDC |
| Hysteresis | 0.2% FS | Compensated Temperature | -10 ~ +40 ℃ |
| Repeatability | 0.1% FS | Operating Temperature | -20 ~ +55 ℃ |
| Creep | 0.03% FS / 10 min | Temperature Effect on Zero | 0.05% FS / 10 ℃ |
| Zero Balance | ±5% FS | Temperature Effect on Span | 0.05% FS / 10 ℃ |
| Input Resistance | 350 ±10 Ω / 700 ±5 Ω | Protection Grade | IP66 |

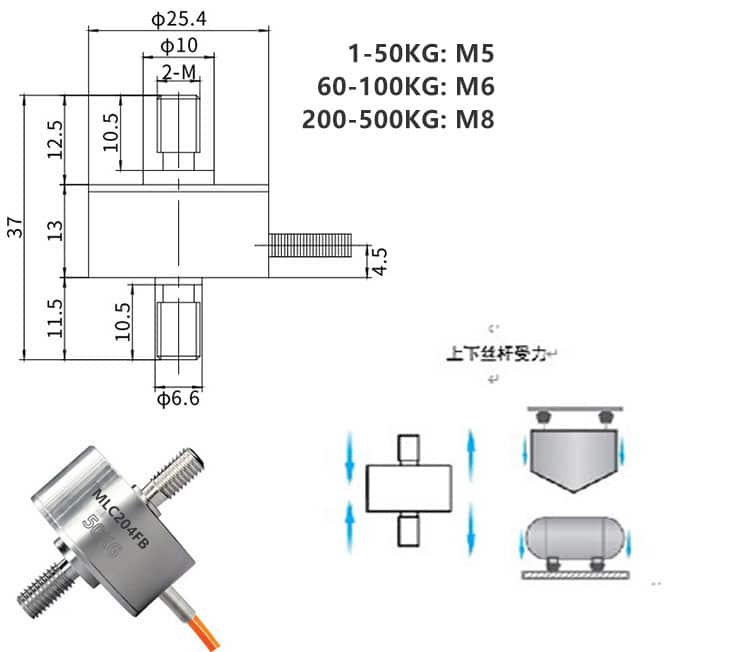

Product Dimension
Force Structure & Assembly Reference
