MLC204EA Miniature Button Force Load Cell

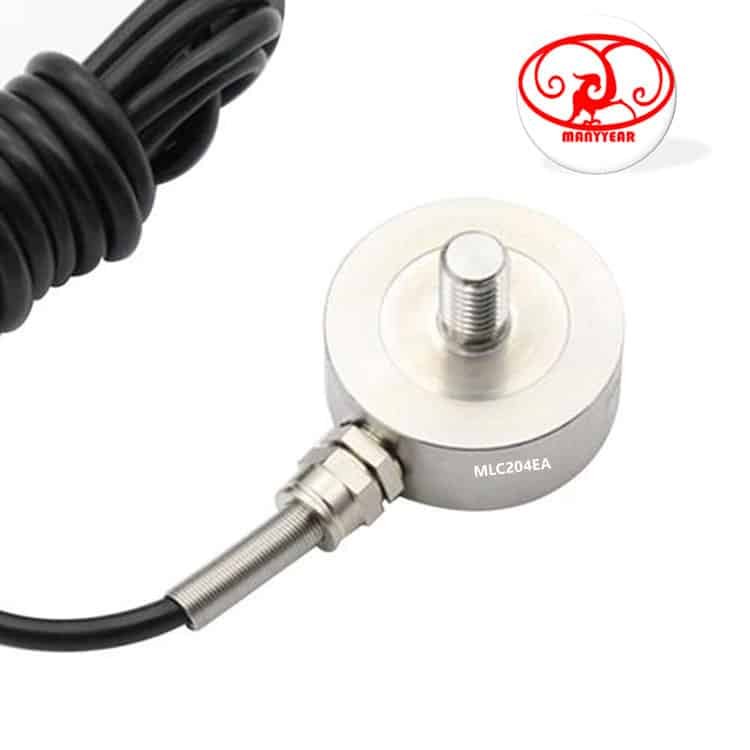

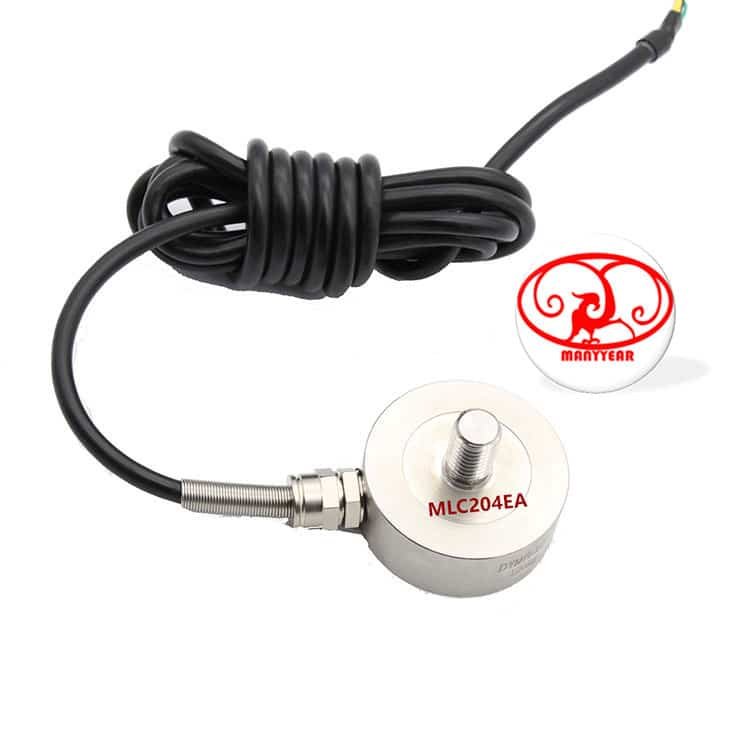

Product Picture Reference
Technology Specification
The following specifications are for reference only. We support ODM and customized products according to customer requirements.
|
Model: MLC204EA Category: Button Type Load Cell Capacity Range: 10, 20, 50, 75, 100, 150, 200 kg Size: Ø35.7 × 23.8 mm Cable: Ø4 mm × 3 m Material: Alloy Steel / Stainless Steel Safety Overload: 120% F.S. Ultimate Overload: 150% F.S. Applications: Robot touch systems, intelligent switches, micro force measurement equipment |
| Specifications | |||
|---|---|---|---|
| Comprehensive Error | 0.2% FS | Output Resistance | 350 ±5 Ω |
| Rated Output | 1.0 ±0.1 mV/V | Insulation Resistance | ≥5000 MΩ (100 VDC) |
| Non-linearity | 0.2% FS | Excitation Voltage | 9–12 VDC |
| Hysteresis | 0.2% FS | Compensated Temperature | -10 ~ +40 ℃ |
| Repeatability | 0.1% FS | Operating Temperature | -20 ~ +55 ℃ |
| Creep | 0.03% FS / 10 min | Temperature Effect on Zero | 0.05% FS / 10 ℃ |
| Zero Balance | ±5% FS | Temperature Effect on Span | 0.05% FS / 10 ℃ |
| Input Resistance | 350 ±5 Ω | Protection Grade | IP66 |

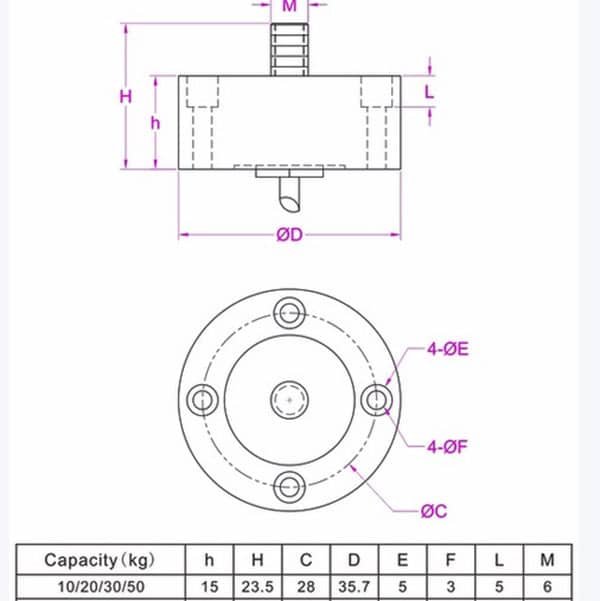

Product Dimension
Force Structure & Assembly Reference
