Lorenz / DR-3000, DR-3000-P Dynamic Torque Sensor

• Range: 0~20KN m
• Output: 0~±5/10V, 4~20mA optional
• Accuracy: ≤±0.2%F.S
• Maximum output: 12000 r/min

• It is an integrated product composed of resistance strain gauge as sensing element and integrated circuit
• High precision, stable and reliable performance

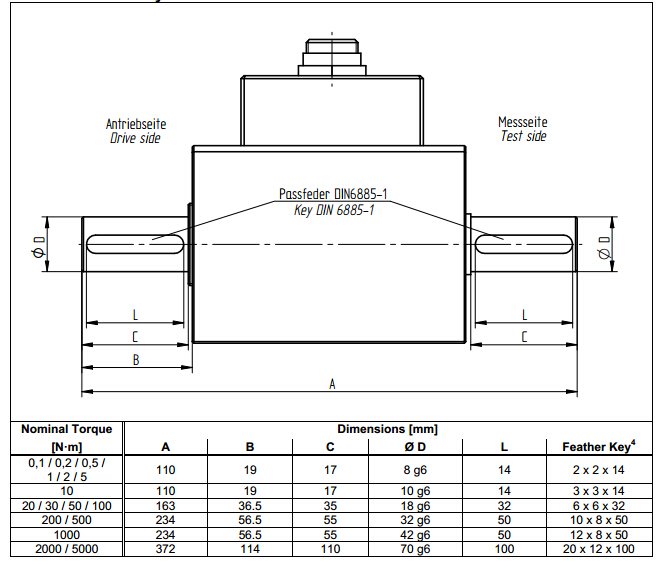

• Medium/Large range torque measurement, output positive and negative torque signal, keyway connection at both ends.
• Speed up to 1800 RPM.

Product description:
Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.

Product description:
 Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.

• Boot 5 minutes into the working status, not need preheating course.
• high accuracy, good stability and anti-jamming.
• Do not need repeated zero setting can measure positive and negative torque.
• Small volume, light weight, easy to install.
• The sensor can be used independently of the secondary instrument to directly output a frequency signal or analog that is
• proportional to the torque.

Product description:Features:
Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.
