DR-2481 Dynamic Torque Sensor
Technical parameters

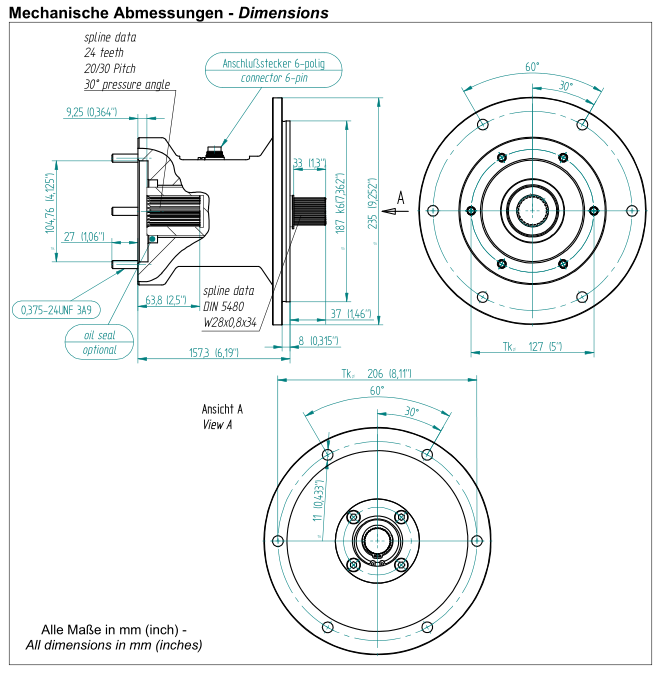

Dimensions
Dynamic Rotary Torque Sensor
Capacity: 5,10,20,50,100,200,500N.m
Category: Dynamic Rotary Torque Sensor
1. Non-contact type and small size structure to prevent wear
2. High precision, stable and reliable performance
3. Torque value can be measured in both positive and negative directions , also speed can be measured
4. Both ends are connected by key-way
5. The maximum speed of 8000RPM, suitable for long-term high speed rotation conditions
- Range: 0~20KN m
- Output: 0~±5/10V, 4~20mA optional
- Accuracy: ≤±0.2%F.S
- Maximum output: 12000 r/min
Feature
- Contact structure.
- Flange type connection, thin thickness.
- High torsional rigidity and strong overload protection capacity.
- High precision with the principle of resistance strain type.
- Output positive and negative torque signals, Quick response.
- Good temperature characteristics with self-compensated strain gauge.
Resistance strain is an integrated product composed of sensitive components and integrated circuits;There is no wear of the collector ring, etc., it can run at high speed for a long time, and output positive and negative torque signals;Both ends are connected by key;
definition: High precision Stable performance Maximum measuring speed 100 rpm
Product description:
Resistive strain is an integrated production of sensitive components and integrated circuits products, high precision, stable and reliable performance.
The collecting ring, which can run at high speed for a long time and output positive and negative torque signals. Both ends are key connections.
The maximum speed dose not exceed 4000rpm.
